A user may specify up to one buffer per communicator, up to one buffer per session, and up to one buffer per MPI process to be used for buffering messages sent in buffered mode. Buffering is done by the sender.
| MPI_COMM_ATTACH_BUFFER(comm, buffer, size) | |
| IN comm | communicator (handle) |
| IN buffer | initial buffer address (choice) |
| IN size | buffer size, in bytes (non-negative integer) |
Provides to MPI a communicator-specific buffer in memory. This is to be used for buffering outgoing messages sent when a buffered mode send is started that uses the communicator comm.
If MPI_BUFFER_AUTOMATIC is passed as the argument buffer, no explicit buffer is attached; rather, automatic buffering is enabled for all buffered mode communication associated with the communicator comm (see Section Buffer Allocation and Usage). Further, if MPI_BUFFER_AUTOMATIC is passed as the argument buffer, the value of size is irrelevant. Note that in Fortran MPI_BUFFER_AUTOMATIC is an object like MPI_BOTTOM (not usable for initialization or assignment), see Section Named Constants.
| MPI_SESSION_ATTACH_BUFFER(session, buffer, size) | |
| IN session | session (handle) |
| IN buffer | initial buffer address (choice) |
| IN size | buffer size, in bytes (non-negative integer) |
Provides to MPI a session-specific buffer in memory. This buffer is to be used for buffering outgoing messages sent when using a communicator that is created from a group that is derived from the session session. However, if there is a communicator-specific buffer attached to the particular communicator at the time of the buffered mode send is started, that buffer is used.
If MPI_BUFFER_AUTOMATIC is passed as the argument buffer, no explicit buffer is attached; rather, automatic buffering is enabled for all buffered mode communication associated with the session session that is not explicitly covered by a buffer provided at communicator level (see Section Buffer Allocation and Usage). Further, if MPI_BUFFER_AUTOMATIC is passed as the argument buffer, the value of size is irrelevant. Note that in Fortran MPI_BUFFER_AUTOMATIC is an object like MPI_BOTTOM (not usable for initialization or assignment), see Section Named Constants.
| MPI_BUFFER_ATTACH(buffer, size) | |
| IN buffer | initial buffer address (choice) |
| IN size | buffer size, in bytes (non-negative integer) |
Provides to MPI an MPI process-specific buffer in memory. This buffer is to be used for buffering outgoing messages sent when using a communicator to which no communicator-specific buffer is attached or which is derived from a session to which no session-specific buffer is attached at the time the buffered mode send is started.
If MPI_BUFFER_AUTOMATIC is passed as the argument buffer, no explicit buffer is attached; rather, automatic buffering is enabled for all buffered mode communication not explicitly covered by a buffer provided at session or communicator level (see Section Buffer Allocation and Usage). Further, if MPI_BUFFER_AUTOMATIC is passed as the argument buffer, the value of size is irrelevant. Note that in Fortran MPI_BUFFER_AUTOMATIC is an object like MPI_BOTTOM (not usable for initialization or assignment), see Section Named Constants.
Advice to users.
The use of a global shared buffer can be problematic when used for communication in different libraries, as the buffer represents a shared resource used for all buffered mode communication. Further, with the introduction of the Sessions Model, the use of a single shared buffer violates the concept of resource isolation that is intended with MPI Sessions. It is therefore recommended, especially for libraries and programs using the Sessions Model, to use only communicator-specific or session-specific buffers.
( End of advice to users.)
Any of these buffers are used only for messages sent in buffered mode.
Only one MPI process-specific buffer can be attached to an MPI process at a time,
only one session-specific buffer can be attached to a session at a time and
only one communicator-specific buffer can be attached to a communicator at a time.
If automatic buffering is enabled at any level, no other buffer can be attached at that level.
A particular memory region can only be used in one buffer; reusing buffer space for multiple sessions, communicators and/or the global buffer is erroneous. Further, only one buffer is used for any one communication following the rules above; buffer space is not combined, even if two buffers are directly or indirectly provided to a communicator to be used for buffered sends.
In C, buffer is the starting address of a memory region. In Fortran, one can pass the first element of a memory region or a whole array, which must be `simply contiguous' (for `simply contiguous,' see also Section Problems Due to Data Copying and Sequence Association with Subscript Triplets).
| MPI_COMM_DETACH_BUFFER(comm, buffer_addr, size) | |
| IN comm | communicator (handle) |
| OUT buffer_addr | initial buffer address (choice) |
| OUT size | buffer size, in bytes (integer) |
Detach the communicator-specific buffer currently attached to the communicator.
| MPI_SESSION_DETACH_BUFFER(session, buffer_addr, size) | |
| IN session | session (handle) |
| OUT buffer_addr | initial buffer address (choice) |
| OUT size | buffer size, in bytes (integer) |
Detach the session-specific buffer currently attached to the session.
| MPI_BUFFER_DETACH(buffer_addr, size) | |
| OUT buffer_addr | initial buffer address (choice) |
| OUT size | buffer size, in bytes (integer) |
Detach the MPI process-specific buffer buffer currently attached to MPI.
The procedure calls return the
address and the size of the detached buffer.
If MPI_BUFFER_AUTOMATIC was used in the corresponding attach procedure, then MPI_BUFFER_AUTOMATIC is also returned in the detach procedure and the value returned in argument size is undefined.
In this case, automatic buffering is disabled upon return from the detach procedure.
When using Fortran mpi_f08, the returned value is identical to c_loc(MPI_BUFFER_AUTOMATIC). Note that c_loc() is an intrinsic in the Fortran ISO_C_BINDING module.
Advice
to implementors.
In Fortran, the implementation of MPI_BUFFER_AUTOMATIC must allow the intrinsic c_loc to be applied to it.
( End of advice to implementors.)
These procedures
will delay their return until all messages currently in the (explicit or automatic) buffer have been transmitted.
Upon return of
these procedures, the user may reuse or deallocate the space taken by the buffer.
If the size of the detached buffer cannot be represented in size, it is set to MPI_UNDEFINED.
The following MPI_XXX_FLUSH_BUFFER procedures will not return until all messages currently in the buffer have been transmitted without detaching the buffer.
Rationale.
These flush procedures provide the same functionality as an atomic combination of first detaching the buffer and then attaching it again (but without having to actually execute the detaching and the re-attaching of the buffer), but they may be implemented with less internal overhead.
( End of rationale.)
| MPI_COMM_FLUSH_BUFFER(comm) | |
| IN comm | communicator (handle) |
MPI_COMM_FLUSH_BUFFER will not return until all messages currently in the communicatorspecific buffer of the calling MPI process have been transmitted.
| MPI_SESSION_FLUSH_BUFFER(session) | |
| IN session | session (handle) |
MPI_SESSION_FLUSH_BUFFER will not return until all messages currently in the session-specific buffer of the calling MPI process have been transmitted.
C binding
int MPI_Buffer_flush(void)
Fortran 2008 binding
MPI_Buffer_flush(ierror)
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
Fortran binding
MPI_BUFFER_FLUSH(IERROR)
INTEGER IERROR
MPI_BUFFER_FLUSH will not return until all messages currently in the MPI process-specific buffer of the calling MPI process have been transmitted.
For all MPI_XXX_FLUSH_BUFFER procedures, there also exist the following nonblocking variants, which start the respective flush operation. These operations will not complete until all messages currently in the respective buffer of the calling MPI process have been transmitted.
| MPI_COMM_IFLUSH_BUFFER(comm, request) | |
| IN comm | communicator (handle) |
| OUT request | communication request (handle) |
| MPI_SESSION_IFLUSH_BUFFER(session, request) | |
| IN session | session (handle) |
| OUT request | communication request (handle) |
| MPI_BUFFER_IFLUSH(request) | |
| OUT request | communication request (handle) |

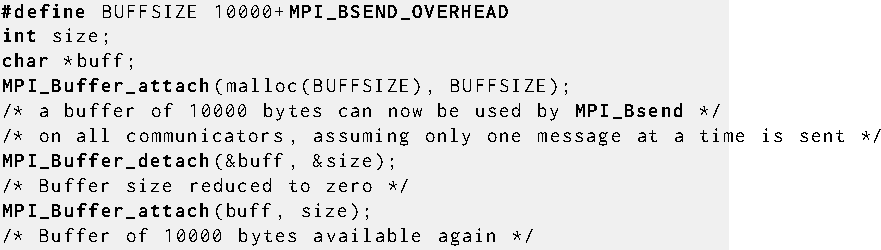

Example
Calls to attach and detach buffers.

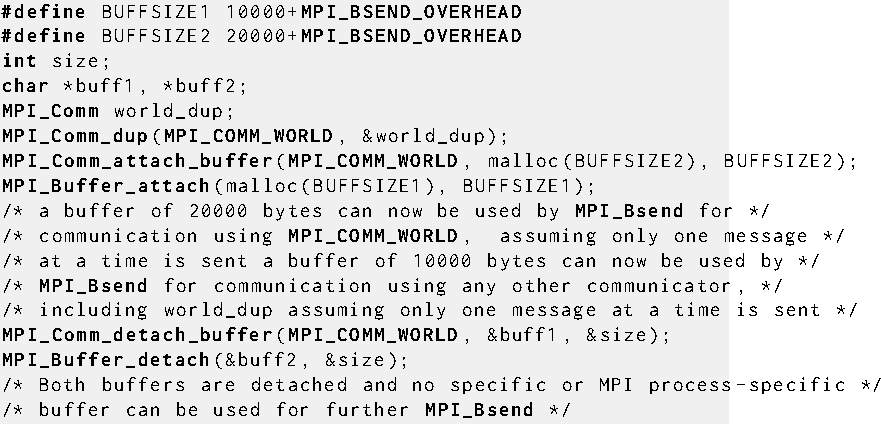

Example
Calls to attach and detach communicator-specific buffers.
Advice to users.
Even though the C procedures
MPI_Buffer_attach,
MPI_Session_attach_buffer,
MPI_Comm_attach_buffer,
MPI_Buffer_detach,
MPI_Session_detach_buffer and
MPI_Comm_detach_buffer
have
an argument of type void*, these arguments are used
differently: a pointer to the buffer is passed to
MPI_Buffer_attach,
MPI_Session_attach_buffer and
MPI_Comm_attach_buffer;
the address of the pointer is passed to
MPI_Buffer_detach,
MPI_Session_detach_buffer and
MPI_Comm_detach_buffer, so that
this call can return the pointer value.
In Fortran with the mpi module or (deprecated) mpif.h, the type of the buffer_addr argument is
wrongly defined and the argument is therefore unused.
In Fortran with the mpi_f08 module, the address of the buffer is returned
as TYPE(C_PTR), see also
Example Memory Allocation
about the use of C_PTR pointers.
( End of advice to users.)
Rationale.
In all cases, arguments are defined to be of type void* (rather than
void* and void**, respectively), so as to avoid complex type
casts. E.g., in the last two examples, &buff, which is of type
char**, can be passed as argument to MPI_Buffer_detach,
MPI_Session_detach_buffer and
MPI_Comm_detach_buffer
without type casting. If the formal parameter had type void** then we
would need a type cast before and after each call.
( End of rationale.)
General semantics of buffered mode sends.
The statements made in this section describe the behavior of MPI
for buffered-mode sends.
When no MPI process-specific buffer is currently (explicitly) attached and if no automatic buffering is enabled, MPI behaves as if a zero-sized MPI process-specific buffer is (implicitly) attached.
It is erroneous to detach a communicator-specific, session-specific, or MPI process-specific buffer, if no such buffer had been attached using a corresponding attach procedure. This includes attach procedure calls using MPI_BUFFER_AUTOMATIC as the buffer argument. It is erroneous to attach a communicator-specific, session-specific, or MPI process-specific buffer, if such buffer had already been attached using a corresponding attach procedure and not yet been detached again. This includes attach procedure calls using MPI_BUFFER_AUTOMATIC as the buffer argument. It is erroneous to flush a communicator-specific, session-specific or MPI process-specific buffer, if there is no buffer attached (including automatic buffering).
MPI_COMM_ATTACH_BUFFER, MPI_SESSION_ATTACH_BUFFER, and MPI_BUFFER_ATTACH are local. MPI_COMM_DETACH_BUFFER, MPI_SESSION_DETACH_BUFFER, MPI_BUFFER_DETACH, MPI_COMM_FLUSH_BUFFER, MPI_SESSION_FLUSH_BUFFER, and MPI_BUFFER_FLUSH are nonlocal; they must not return before all buffered messages in their related buffers are transmitted, and they must eventually return when all corresponding receive operations are started (provided that none are cancelled).
Automatic buffering with buffered mode sends. If the buffer used at the time of buffered mode send is set to the buffer address MPI_BUFFER_AUTOMATIC, then a buffer of sufficient size is automatically used by the MPI library.
Advice to users.
When using automatic buffering, the user relinquishes control over buffer management, including allocation and deallocation decisions and timing, to the MPI library. If explicit control is needed over when and how much buffer space is allocated, automatic buffering must not be used.
( End of advice to users.)
Advice
to implementors.
High-quality implementations of an MPI library should strive to support automatic buffering in a balanced fashion, i.e., providing the right balance between memory allocated for send operations and memory available for the end user.
( End of advice to implementors.)
The flush operations for the communicator-specific, session-specific, and MPI process-specific buffers
can also be used for automatic buffering. The flush procedure will not return until all automatically allocated buffers
for the communicator-specific, session-specific, or MPI process-specific buffers, respectively, no longer hold message data and could be deallocated by the MPI library, if it chooses to do so.
Advice to users.
With standard mode send, the limitation of needed buffer space is implemented within
the MPI library through switching from internal buffering to internal synchronous mode.
If the user wants to limit the automatically allocated buffer space for buffered mode send
using automatic buffering, the user may call explicitly the appropriate flush procedure to wait
until automatically allocated buffers are deallocated.
( End of advice to users.)
Further rules.
In the case of an attached buffer (i.e., not using automatic buffering),
the user must provide as much buffering for outgoing messages as would be required if
outgoing message
data were buffered by the sending MPI process, in the specified buffer space,
using a circular, contiguous-space allocation policy.
We outline below a model implementation that defines this policy.
MPI may provide more buffering, and may use a better buffer allocation
algorithm than described below.
On the other hand, MPI may signal an error whenever the
simple buffering allocator described below would run out of space.
MPI must not require more buffer space as described in the model implementation below.
MPI does not provide mechanisms for querying or controlling buffering done by standard mode sends. It is expected that vendors will provide such information for their implementations.
Rationale.
There is a wide spectrum of possible implementations of buffered communication operations:
buffering can be done at sender, at receiver, or both; buffers can be dedicated
to one sender-receiver pair, or be shared by
all communication operations; buffering can be done in real or
in virtual memory; it can use dedicated memory, or memory shared by other
MPI processes; buffer space may be allocated statically or be changed dynamically;
etc. It does not seem feasible to provide a portable mechanism for querying
or controlling buffering that would be compatible with all these choices, yet
provide meaningful information.
( End of rationale.)
