A valid MPI implementation guarantees certain general properties of point-to-point communication, which are described in this section.
Order. Messages are nonovertaking: If a sender sends two messages in succession to the same destination, and both match the same receive, then this operation cannot receive the second message if the first one is still pending. If a receiver posts two receives in succession, and both match the same message, then the second receive operation cannot be satisfied by this message, if the first one is still pending. This requirement facilitates matching of sends to receives. It guarantees that message-passing code is deterministic, if MPI processes are single-threaded and the wildcard MPI_ANY_SOURCE is not used in receives. (Some of the calls described later, such as MPI_CANCEL or MPI_WAITANY, are additional sources of nondeterminism.)
If an MPI process has a single thread of execution, then any two communication operations executed by this MPI process are ordered.
Advice to users.
The MPI Forum believes the following paragraph is ambiguous and may clarify the meaning in a future version of the MPI Standard.
( End of advice to users.)
On the other hand, if the MPI process is
multithreaded, then the semantics of thread execution may not define
a relative order between two send operations executed by two
distinct threads. The operations are logically concurrent, even if one
physically precedes the other. In such a case, the two messages sent can be
received in any order. Similarly, if two receive operations that are logically concurrent
receive two successively sent messages, then the two messages can
match the two receives in either order.
Advice
to implementors.
The MPI Forum believes the previous paragraph is ambiguous and may clarify the meaning in a future version of the MPI Standard.
( End of advice to implementors.)

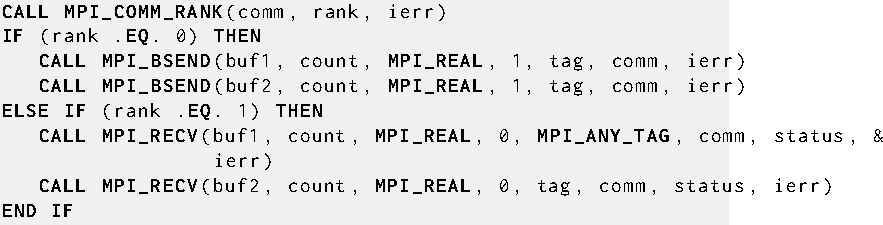

Example
An example of nonovertaking messages.
The message sent by the first send must be received by the first receive, and the message sent by the second send must be received by the second receive.
Progress. If a pair of matching send and receive operations have been initiated, then at least one of these two operations will complete, independently of other actions in the system: the send operation will complete, unless the receive is satisfied by another message, and completes; the receive operation will complete, unless the message sent is consumed by another matching receive that was started at the same destination MPI process.

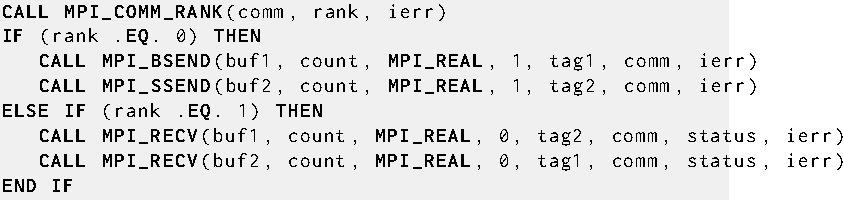

Example
An example of two, intertwined matching pairs.
Both MPI processes invoke their first communication call. Since the first send at the MPI process with rank = 0 uses the buffered mode, it must complete, irrespective of the state of the other MPI process(es). Since no matching receive is started, the message will be copied into buffer space. (If insufficient buffer space is available, then the program will fail.) The second send is then invoked. At that point, a matching pair of send and receive operation is enabled, and both operations must complete. Next, the second receive call is invoked, which will be satisfied by the buffered message. Note that the MPI process with rank = 1 received the messages in the reverse order they were sent.
Fairness. MPI makes no guarantee of fairness in the handling of communication. Suppose that a send is started. Then it is possible that the destination MPI process repeatedly posts a receive that matches this send, yet the message is never received, because it is each time overtaken by another message, sent from another source. Similarly, suppose that a receive was started by a multithreaded MPI process. Then it is possible that messages that match this receive are repeatedly received, yet the receive is never satisfied, because it is overtaken by other receives started at this MPI process (by other executing threads). It is the programmer's responsibility to prevent starvation in such situations.
Resource limitations. Any pending communication operation and decoupled MPI activity consumes system resources that are limited. Errors may occur when lack of resources prevent the execution of an MPI call. High-quality implementations will use a (small) fixed amount of resources for each pending send in the ready or synchronous mode and for each pending receive. However, buffer space may be consumed to store messages sent in standard mode, and must be consumed to store messages sent in buffered mode, when no matching receive is available. The amount of space available for buffering will be much smaller than program data memory on many systems. Then, it will be easy to write programs that overrun available buffer space.
MPI allows the user to provide buffer memory for messages sent in the buffered mode. Furthermore, MPI specifies a detailed operational model for the use of this buffer. An MPI implementation is required to do no worse than implied by this model. This allows users to avoid buffer overflows when they use buffered sends. Buffer allocation and use is described in Section Buffer Allocation and Usage.
A buffered send operation that cannot complete because of a lack of buffer space is erroneous. When such a situation is detected, an error is signaled that may cause the program to terminate abnormally. On the other hand, a standard send operation that cannot complete because of lack of buffer space will merely block, waiting for buffer space to become available or for a matching receive to be started. This behavior is preferable in many situations. Consider a situation where a producer repeatedly produces new values and sends them to a consumer. Assume that the producer produces new values faster than the consumer can consume them. If buffered sends are used, then a buffer overflow will result. Additional synchronization has to be added to the program so as to prevent this from occurring. If standard sends are used, then the producer will be automatically throttled, as its send operations will block when buffer space is unavailable.
In some situations, a lack of buffer space leads to deadlock situations. This is illustrated by the examples below.
Example
An exchange of messages.
This program will succeed even if no buffer space for data is available. The standard send operation can be replaced, in this example, with a synchronous send.

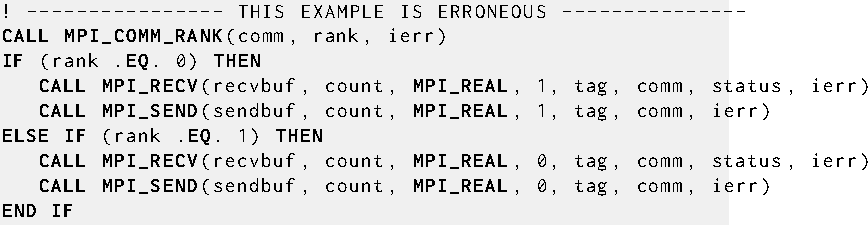

Example
An errant attempt to exchange messages.
The receive operation of the MPI process with rank = 0 must complete before its send, and can complete only if the matching send of the MPI process with rank = 1 is executed. The receive operation of the MPI process with rank = 1 must complete before its send and can complete only if the matching send of the MPI process with rank = 0 is executed. This program will always deadlock. The same holds for any other send mode.

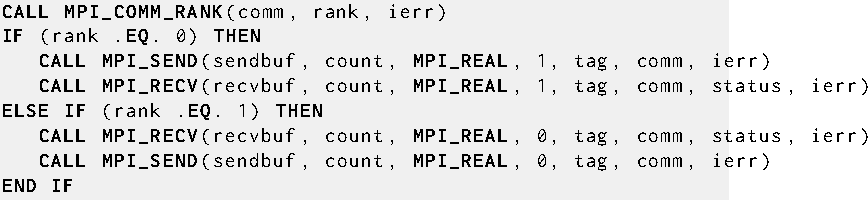

Example
An unsafe exchange that relies on MPI to provide sufficient buffering.
The message sent by each MPI process has to be copied out before the send operation completes and the receive operation starts. For the program to complete, it is necessary that at least one of the two messages sent be buffered. Thus, this program can succeed only if the communication system can buffer at least count words of data.
Advice to users.
If standard mode send operations are used as in Example Semantics of Point-to-Point Communication, then a deadlock situation may occur where both MPI processes are blocked because sufficient buffer space is not available. The same will certainly happen, if the synchronous mode is used. If the buffered mode is used, and not enough buffer space is available, then the program will not complete either. However, rather than a deadlock situation, we shall have a buffer overflow error.
A portable program using standard mode send operations should not rely on message buffering for the program to complete without deadlock. All sends in such a portable program can be replaced with synchronous mode sends and the program will still run correctly. The buffered send mode can be used for programs that require buffering.
Nonblocking message-passing operations, as described in
Section Nonblocking Communication, can be used to avoid the need for buffering
outgoing messages. This can prevent unintentional serialization or deadlock due to lack of buffer space, and
improves performance, by allowing overlap of communication with other communication or with computation,
and avoiding the overheads of allocating buffers and copying messages into
buffers.
( End of advice to users.)
