It is often useful in a put operation to combine the data moved to the target process with the data that resides at that process, rather than replacing it. This will allow, for example, the accumulation of a sum by having all involved processes add their contributions to the sum variable in the memory of one process. The accumulate functions have slightly different semantics with respect to overlapping data accesses than the put and get functions; see Section Semantics and Correctness for details.


PreviousUpNext
Up: Communication Calls Next: Accumulate Function Previous: Examples for Communication Calls


251.1. Accumulate Function

PreviousUpNext
Up: Accumulate Functions Next: Get Accumulate Function Previous: Accumulate Functions

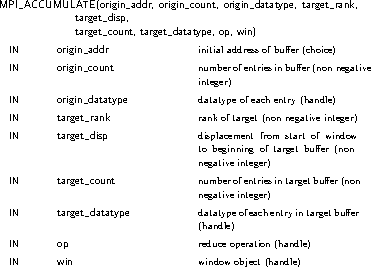

Image file

int MPI_Accumulate(const void *origin_addr, int origin_count, MPI_Datatype origin_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Op op, MPI_Win win)

MPI_Accumulate(origin_addr, origin_count, origin_datatype, target_rank, target_disp, target_count, target_datatype, op, win, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
INTEGER, INTENT(IN) :: origin_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Op), INTENT(IN) :: op
TYPE(MPI_Win), INTENT(IN) :: win
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_ACCUMULATE(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, IERROR)
<type> ORIGIN_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE,TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, IERROR

Accumulate the contents of the origin buffer (as defined by origin_addr, origin_count, and origin_datatype) to the buffer specified by arguments target_count and target_datatype, at offset target_disp, in the target window specified by target_rank and win, using the operation op. This is like MPI_PUT except that data is combined into the target area instead of overwriting it.

Any of the predefined operations for MPI_REDUCE can be used. User-defined functions cannot be used. For example, if op is MPI_SUM, each element of the origin buffer is added to the corresponding element in the target, replacing the former value in the target.

Each datatype argument must be a predefined datatype or a derived datatype, where all basic components are of the same predefined datatype. Both datatype arguments must be constructed from the same predefined datatype. The operation op applies to elements of that predefined type. The parameter target_datatype must not specify overlapping entries, and the target buffer must fit in the target window.

A new predefined operation, MPI_REPLACE, is defined. It corresponds to the associative function f(a,b) = b; i.e., the current value in the target memory is replaced by the value supplied by the origin.

MPI_REPLACE can be used only in MPI_ACCUMULATE, MPI_RACCUMULATE, MPI_GET_ACCUMULATE, MPI_FETCH_AND_OP, and MPI_RGET_ACCUMULATE, but not in collective reduction operations such as MPI_REDUCE.


Advice to users.

MPI_PUT is a special case of MPI_ACCUMULATE, with the operation MPI_REPLACE. Note, however, that MPI_PUT and MPI_ACCUMULATE have different constraints on concurrent updates. ( End of advice to users.)

Example We want to compute Image file . The arrays A, B, and map are distributed in the same manner. We write the simple version.


SUBROUTINE SUM(A, B, map, m, comm, p)
USE MPI
INTEGER m, map(m), comm, p, win, ierr, disp_int
REAL A(m), B(m)
INTEGER (KIND=MPI_ADDRESS_KIND) lowerbound, size, realextent, disp_aint

CALL MPI_TYPE_GET_EXTENT(MPI_REAL, lowerbound, realextent, ierr)
size = m * realextent
disp_int = realextent
CALL MPI_WIN_CREATE(B, size, disp_int, MPI_INFO_NULL,  &
                    comm, win, ierr)

CALL MPI_WIN_FENCE(0, win, ierr)
DO i=1,m
  j = map(i)/m
  disp_aint = MOD(map(i),m)
  CALL MPI_ACCUMULATE(A(i), 1, MPI_REAL, j, disp_aint, 1, MPI_REAL,   &
                      MPI_SUM, win, ierr)
END DO
CALL MPI_WIN_FENCE(0, win, ierr)

CALL MPI_WIN_FREE(win, ierr)
RETURN
END
This code is identical to the code in Example Examples for Communication Calls , except that a call to get has been replaced by a call to accumulate. (Note that, if map is one-to-one, the code computes Image file , which is the reverse assignment to the one computed in that previous example.) In a similar manner, we can replace in Example Examples for Communication Calls , the call to get by a call to accumulate, thus performing the computation with only one communication between any two processes.


PreviousUpNext
Up: Accumulate Functions Next: Get Accumulate Function Previous: Accumulate Functions


251.2. Get Accumulate Function

PreviousUpNext
Up: Accumulate Functions Next: Fetch and Op Function Previous: Accumulate Function

It is often useful to have fetch-and-accumulate semantics such that the remote data is returned to the caller before the sent data is accumulated into the remote data. The get and accumulate steps are executed atomically for each basic element in the datatype (see Section Semantics and Correctness for details). The predefined operation MPI_REPLACE provides fetch-and-set behavior.

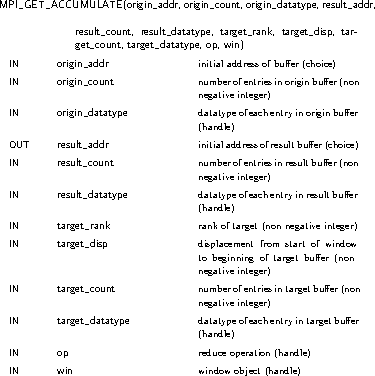

Image file

int MPI_Get_accumulate(const void *origin_addr, int origin_count, MPI_Datatype origin_datatype, void *result_addr, int result_count, MPI_Datatype result_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Op op, MPI_Win win)

MPI_Get_accumulate(origin_addr, origin_count, origin_datatype, result_addr, result_count, result_datatype, target_rank, target_disp, target_count, target_datatype, op, win, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: result_addr
INTEGER, INTENT(IN) :: origin_count, result_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype, result_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Op), INTENT(IN) :: op
TYPE(MPI_Win), INTENT(IN) :: win
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_GET_ACCUMULATE(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, RESULT_ADDR, RESULT_COUNT, RESULT_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, IERROR)
<type> ORIGIN_ADDR(*), RESULT_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE, RESULT_COUNT, RESULT_DATATYPE, TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, IERROR

Accumulate origin_count elements of type origin_datatype from the origin buffer ( origin_addr) to the buffer at offset target_disp, in the target window specified by target_rank and win, using the operation op and return in the result buffer result_addr the content of the target buffer before the accumulation, specified by target_disp, target_count, and target_datatype. The data transferred from origin to target must fit, without truncation, in the target buffer. Likewise, the data copied from target to origin must fit, without truncation, in the result buffer.

The origin and result buffers ( origin_addr and result_addr) must be disjoint. Each datatype argument must be a predefined datatype or a derived datatype where all basic components are of the same predefined datatype. All datatype arguments must be constructed from the same predefined datatype. The operation op applies to elements of that predefined type. target_datatype must not specify overlapping entries, and the target buffer must fit in the target window or in attached memory in a dynamic window. The operation is executed atomically for each basic datatype; see Section Semantics and Correctness for details.

Any of the predefined operations for MPI_REDUCE, as well as MPI_NO_OP or MPI_REPLACE can be specified as op. User-defined functions cannot be used. A new predefined operation, MPI_NO_OP, is defined. It corresponds to the associative function f(a,b) = a; i.e., the current value in the target memory is returned in the result buffer at the origin and no operation is performed on the target buffer. When MPI_NO_OP is specified as the operation, the origin_addr, origin_count, and origin_datatype arguments are ignored. MPI_NO_OP can be used only in MPI_GET_ACCUMULATE, MPI_RGET_ACCUMULATE, and MPI_FETCH_AND_OP. MPI_NO_OP cannot be used in MPI_ACCUMULATE, MPI_RACCUMULATE, or collective reduction operations, such as MPI_REDUCE and others.


Advice to users.

MPI_GET is similar to MPI_GET_ACCUMULATE, with the operation MPI_NO_OP. Note, however, that MPI_GET and MPI_GET_ACCUMULATE have different constraints on concurrent updates. ( End of advice to users.)


PreviousUpNext
Up: Accumulate Functions Next: Fetch and Op Function Previous: Accumulate Function


251.3. Fetch and Op Function

PreviousUpNext
Up: Accumulate Functions Next: Compare and Swap Function Previous: Get Accumulate Function

The generic functionality of MPI_GET_ACCUMULATE might limit the performance of fetch-and-increment or fetch-and-add calls that might be supported by special hardware operations. MPI_FETCH_AND_OP thus allows for a fast implementation of a commonly used subset of the functionality of MPI_GET_ACCUMULATE.

MPI_FETCH_AND_OP(origin_addr, result_addr, datatype, target_rank, target_disp, op, win)
IN origin_addrinitial address of buffer (choice)
OUT result_addrinitial address of result buffer (choice)
IN datatypedatatype of the entry in origin, result, and target buffers (handle)
IN target_rankrank of target (non-negative integer)
IN target_dispdisplacement from start of window to beginning of target buffer (non-negative integer)
IN opreduce operation (handle)
IN winwindow object (handle)

int MPI_Fetch_and_op(const void *origin_addr, void *result_addr, MPI_Datatype datatype, int target_rank, MPI_Aint target_disp, MPI_Op op, MPI_Win win)

MPI_Fetch_and_op(origin_addr, result_addr, datatype, target_rank, target_disp, op, win, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: result_addr
TYPE(MPI_Datatype), INTENT(IN) :: datatype
INTEGER, INTENT(IN) :: target_rank
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Op), INTENT(IN) :: op
TYPE(MPI_Win), INTENT(IN) :: win
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_FETCH_AND_OP(ORIGIN_ADDR, RESULT_ADDR, DATATYPE, TARGET_RANK, TARGET_DISP, OP, WIN, IERROR)
<type> ORIGIN_ADDR(*), RESULT_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER DATATYPE, TARGET_RANK, OP, WIN, IERROR

Accumulate one element of type datatype from the origin buffer ( origin_addr) to the buffer at offset target_disp, in the target window specified by target_rank and win, using the operation op and return in the result buffer result_addr the content of the target buffer before the accumulation.

The origin and result buffers ( origin_addr and result_addr) must be disjoint. Any of the predefined operations for MPI_REDUCE, as well as MPI_NO_OP or MPI_REPLACE, can be specified as op; user-defined functions cannot be used. The datatype argument must be a predefined datatype. The operation is executed atomically.


PreviousUpNext
Up: Accumulate Functions Next: Compare and Swap Function Previous: Get Accumulate Function


251.4. Compare and Swap Function

PreviousUpNext
Up: Accumulate Functions Next: Request-based RMA Communication Operations Previous: Fetch and Op Function

Another useful operation is an atomic compare and swap where the value at the origin is compared to the value at the target, which is atomically replaced by a third value only if the values at origin and target are equal.

MPI_COMPARE_AND_SWAP(origin_addr, compare_addr, result_addr, datatype, target_rank, target_disp, win)
IN origin_addrinitial address of buffer (choice)
IN compare_addrinitial address of compare buffer (choice)
OUT result_addrinitial address of result buffer (choice)
IN datatypedatatype of the element in all buffers (handle)
IN target_rankrank of target (non-negative integer)
IN target_dispdisplacement from start of window to beginning of target buffer (non-negative integer)
IN winwindow object (handle)

int MPI_Compare_and_swap(const void *origin_addr, const void *compare_addr, void *result_addr, MPI_Datatype datatype, int target_rank, MPI_Aint target_disp, MPI_Win win)

MPI_Compare_and_swap(origin_addr, compare_addr, result_addr, datatype, target_rank, target_disp, win, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: compare_addr
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: result_addr
TYPE(MPI_Datatype), INTENT(IN) :: datatype
INTEGER, INTENT(IN) :: target_rank
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Win), INTENT(IN) :: win
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_COMPARE_AND_SWAP(ORIGIN_ADDR, COMPARE_ADDR, RESULT_ADDR, DATATYPE, TARGET_RANK, TARGET_DISP, WIN, IERROR)
<type> ORIGIN_ADDR(*), COMPARE_ADDR(*), RESULT_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER DATATYPE, TARGET_RANK, WIN, IERROR

This function compares one element of type datatype in the compare buffer compare_addr with the buffer at offset target_disp in the target window specified by target_rank and win and replaces the value at the target with the value in the origin buffer origin_addr if the compare buffer and the target buffer are identical. The original value at the target is returned in the buffer result_addr. The parameter datatype must belong to one of the following categories of predefined datatypes: C integer, Fortran integer, Logical, Multi-language types, or Byte as specified in Section Predefined Reduction Operations . The origin and result buffers ( origin_addr and result_addr) must be disjoint.


PreviousUpNext
Up: Accumulate Functions Next: Request-based RMA Communication Operations Previous: Fetch and Op Function
