Request-based RMA communication operations allow the user to associate a request handle with the RMA operations and test or wait for the completion of these requests using the functions described in Section Communication Completion . Request-based RMA operations are only valid within a passive target epoch (see Section Synchronization Calls ).
Upon returning from a completion call in which an RMA operation completes, the MPI_ERROR field in the associated status object is set appropriately (see Section Return Status ). All other fields of status and the results of status query functions (e.g., MPI_GET_COUNT) are undefined. It is valid to mix different request types (e.g., any combination of RMA requests, collective requests, I/O requests, generalized requests, or point-to-point requests) in functions that enable multiple completions (e.g., MPI_WAITALL). It is erroneous to call MPI_REQUEST_FREE or MPI_CANCEL for a request associated with an RMA operation. RMA requests are not persistent.
The end of the epoch, or explicit bulk synchronization using MPI_WIN_FLUSH, MPI_WIN_FLUSH_ALL, MPI_WIN_FLUSH_LOCAL, or MPI_WIN_FLUSH_LOCAL_ALL, also indicates completion of the RMA operations. However, users must still wait or test on the request handle to allow the MPI implementation to clean up any resources associated with these requests; in such cases the wait operation will complete locally.
| MPI_RPUT(origin_addr, origin_count, origin_datatype, target_rank, target_disp, target_count, target_datatype, win, request) | |
| IN origin_addr | initial address of origin buffer (choice) |
| IN origin_count | number of entries in origin buffer (non-negative integer) |
| IN origin_datatype | datatype of each entry in origin buffer (handle) |
| IN target_rank | rank of target (non-negative integer) |
| IN target_disp | displacement from start of window to target buffer (non-negative integer) |
| IN target_count | number of entries in target buffer (non-negative integer) |
| IN target_datatype | datatype of each entry in target buffer (handle) |
| IN win | window object used for communication (handle) |
| OUT request | RMA request (handle) |
int MPI_Rput(const void *origin_addr, int origin_count, MPI_Datatype origin_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Win win, MPI_Request *request)
MPI_Rput(origin_addr, origin_count, origin_datatype, target_rank, target_disp, target_count, target_datatype, win, request, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
INTEGER, INTENT(IN) :: origin_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Win), INTENT(IN) :: win
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_RPUT(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, WIN, REQUEST, IERROR)
<type> ORIGIN_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, WIN, REQUEST, IERROR
MPI_RPUT is similar to MPI_PUT (Section Put ), except that it allocates a communication request object and associates it with the request handle (the argument request). The completion of an MPI_RPUT operation (i.e., after the corresponding test or wait) indicates that the sender is now free to update the locations in the origin buffer. It does not indicate that the data is available at the target window. If remote completion is required, MPI_WIN_FLUSH, MPI_WIN_FLUSH_ALL, MPI_WIN_UNLOCK, or MPI_WIN_UNLOCK_ALL can be used.
| MPI_RGET(origin_addr, origin_count,
origin_datatype, target_rank, target_disp, target_count, target_datatype, win, request) | |
| OUT origin_addr | initial address of origin buffer (choice) |
| IN origin_count | number of entries in origin buffer (non-negative integer) |
| IN origin_datatype | datatype of each entry in origin buffer (handle) |
| IN target_rank | rank of target (non-negative integer) |
| IN target_disp | displacement from window start to the beginning of the target buffer (non-negative integer) |
| IN target_count | number of entries in target buffer (non-negative integer) |
| IN target_datatype | datatype of each entry in target buffer (handle) |
| IN win | window object used for communication (handle) |
| OUT request | RMA request (handle) |
int MPI_Rget(void *origin_addr, int origin_count, MPI_Datatype origin_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Win win, MPI_Request *request)
MPI_Rget(origin_addr, origin_count, origin_datatype, target_rank, target_disp, target_count, target_datatype, win, request, ierror)
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: origin_addr
INTEGER, INTENT(IN) :: origin_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Win), INTENT(IN) :: win
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_RGET(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, WIN, REQUEST, IERROR)
<type> ORIGIN_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, WIN, REQUEST, IERROR
MPI_RGET is similar to MPI_GET (Section Get ), except that it allocates a communication request object and associates it with the request handle (the argument request) that can be used to wait or test for completion. The completion of an MPI_RGET operation indicates that the data is available in the origin buffer. If origin_addr points to memory attached to a window, then the data becomes available in the private copy of this window.

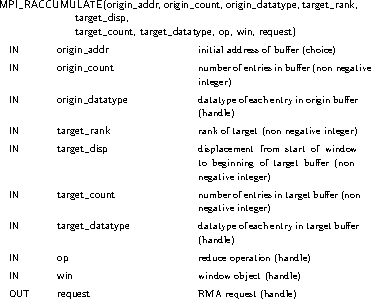

int MPI_Raccumulate(const void *origin_addr, int origin_count, MPI_Datatype origin_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Op op, MPI_Win win, MPI_Request *request)
MPI_Raccumulate(origin_addr, origin_count, origin_datatype, target_rank, target_disp, target_count, target_datatype, op, win, request, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
INTEGER, INTENT(IN) :: origin_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Op), INTENT(IN) :: op
TYPE(MPI_Win), INTENT(IN) :: win
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_RACCUMULATE(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, REQUEST, IERROR)
<type> ORIGIN_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE, TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, REQUEST, IERROR
MPI_RACCUMULATE is similar to MPI_ACCUMULATE (Section Accumulate Functions ), except that it allocates a communication request object and associates it with the request handle (the argument request) that can be used to wait or test for completion. The completion of an MPI_RACCUMULATE operation indicates that the origin buffer is free to be updated. It does not indicate that the operation has completed at the target window.

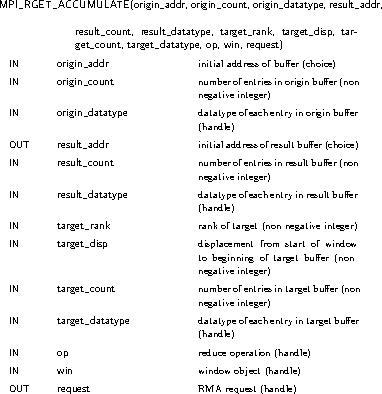

int MPI_Rget_accumulate(const void *origin_addr, int origin_count, MPI_Datatype origin_datatype, void *result_addr, int result_count, MPI_Datatype result_datatype, int target_rank, MPI_Aint target_disp, int target_count, MPI_Datatype target_datatype, MPI_Op op, MPI_Win win, MPI_Request *request)
MPI_Rget_accumulate(origin_addr, origin_count, origin_datatype, result_addr, result_count, result_datatype, target_rank, target_disp, target_count, target_datatype, op, win, request, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: origin_addr
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: result_addr
INTEGER, INTENT(IN) :: origin_count, result_count, target_rank, target_count
TYPE(MPI_Datatype), INTENT(IN) :: origin_datatype, target_datatype, result_datatype
INTEGER(KIND=MPI_ADDRESS_KIND), INTENT(IN) :: target_disp
TYPE(MPI_Op), INTENT(IN) :: op
TYPE(MPI_Win), INTENT(IN) :: win
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_RGET_ACCUMULATE(ORIGIN_ADDR, ORIGIN_COUNT, ORIGIN_DATATYPE, RESULT_ADDR, RESULT_COUNT, RESULT_DATATYPE, TARGET_RANK, TARGET_DISP, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, REQUEST, IERROR)
<type> ORIGIN_ADDR(*), RESULT_ADDR(*)
INTEGER(KIND=MPI_ADDRESS_KIND) TARGET_DISP
INTEGER ORIGIN_COUNT, ORIGIN_DATATYPE, RESULT_COUNT, RESULT_DATATYPE, TARGET_RANK, TARGET_COUNT, TARGET_DATATYPE, OP, WIN, REQUEST, IERROR
MPI_RGET_ACCUMULATE is similar to MPI_GET_ACCUMULATE (Section Get Accumulate Function ), except that it allocates a communication request object and associates it with the request handle (the argument request) that can be used to wait or test for completion. The completion of an MPI_RGET_ACCUMULATE operation indicates that the data is available in the result buffer and the origin buffer is free to be updated. It does not indicate that the operation has been completed at the target window.
