101. Examples using MPI_SCATTER, MPI_SCATTERV

PreviousUpNext
Up: Scatter Next: Gather-to-all Previous: Scatter

The examples in this section use intracommunicators.


Example The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . Scatter sets of 100 ints from the root to each process in the group. See Figure 9 .


    MPI_Comm comm;
    int gsize,*sendbuf;
    int root, rbuf[100];
    ...
    MPI_Comm_size(comm, &gsize);
    sendbuf = (int *)malloc(gsize*100*sizeof(int));
    ...
    MPI_Scatter(sendbuf, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);

Image file

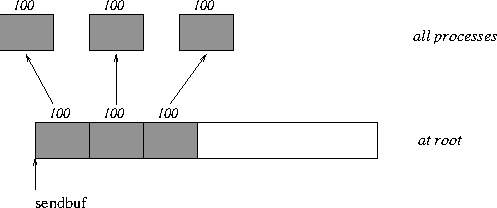

Figure 9: The root process scatters sets of 100 ints to each process in the group.


Example The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . The root process scatters sets of 100 ints to the other processes, but the sets of 100 are stride ints apart in the sending buffer. Requires use of MPI_SCATTERV. Assume Image file . See Figure 10 .


    MPI_Comm comm;
    int gsize,*sendbuf;
    int root, rbuf[100], i, *displs, *scounts;

    ...

    MPI_Comm_size(comm, &gsize);
    sendbuf = (int *)malloc(gsize*stride*sizeof(int));
    ...
    displs = (int *)malloc(gsize*sizeof(int));
    scounts = (int *)malloc(gsize*sizeof(int));
    for (i=0; i<gsize; ++i) {
        displs[i] = i*stride;
        scounts[i] = 100;
    }
    MPI_Scatterv(sendbuf, scounts, displs, MPI_INT, rbuf, 100, MPI_INT,
                                                              root, comm);

Image file

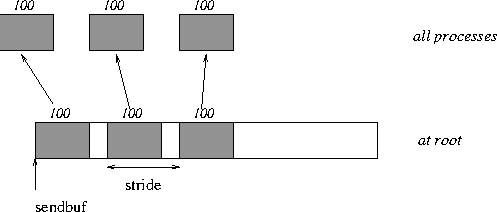

Figure 10: The root process scatters sets of 100 ints, moving by stride ints from send to send in the scatter.


Example The reverse of Example Examples using MPI_GATHER, MPI_GATHERV . We have a varying stride between blocks at sending (root) side, at the receiving side we receive into the i-th column of a 100×150 C array. See Figure 11 .


    MPI_Comm comm;
    int gsize,recvarray[100][150],*rptr;
    int root, *sendbuf, myrank, *stride;
    MPI_Datatype rtype;
    int i, *displs, *scounts, offset;
    ...
    MPI_Comm_size(comm, &gsize);
    MPI_Comm_rank(comm, &myrank);

    stride = (int *)malloc(gsize*sizeof(int));
    ...
    /* stride[i] for i = 0 to gsize-1 is set somehow
     * sendbuf comes from elsewhere
     */
    ...
    displs = (int *)malloc(gsize*sizeof(int));
    scounts = (int *)malloc(gsize*sizeof(int));
    offset = 0;
    for (i=0; i<gsize; ++i) {
        displs[i] = offset;
        offset += stride[i];
        scounts[i] = 100 - i;
    }
    /* Create datatype for the column we are receiving
     */
    MPI_Type_vector(100-myrank, 1, 150, MPI_INT, &rtype);
    MPI_Type_commit(&rtype);
    rptr = &recvarray[0][myrank];
    MPI_Scatterv(sendbuf, scounts, displs, MPI_INT, rptr, 1, rtype,
                                                            root, comm);


Image file

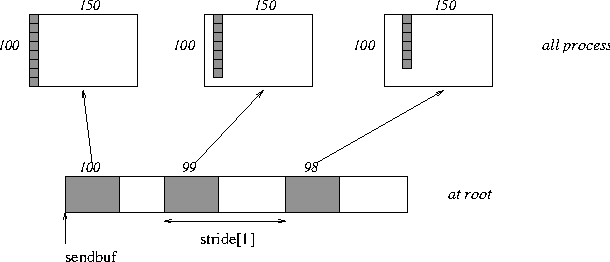

Figure 11: The root scatters blocks of 100-i ints into column i of a 100$ x $150 C array. At the sending side, the blocks are stride[i] ints apart.
