99. Examples using MPI_GATHER, MPI_GATHERV

PreviousUpNext
Up: Gather Next: Scatter Previous: Gather

The examples in this section use intracommunicators.


Example Gather 100 ints from every process in group to root. See Figure 4 .


    MPI_Comm comm;
    int gsize,sendarray[100];
    int root, *rbuf;
    ...
    MPI_Comm_size(comm, &gsize);
    rbuf = (int *)malloc(gsize*100*sizeof(int));
    MPI_Gather(sendarray, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);


Example Previous example modified --- only the root allocates memory for the receive buffer.


    MPI_Comm comm;
    int gsize,sendarray[100];
    int root, myrank, *rbuf;
    ...
    MPI_Comm_rank(comm, &myrank);
    if (myrank == root) {
       MPI_Comm_size(comm, &gsize);
       rbuf = (int *)malloc(gsize*100*sizeof(int));
    }
    MPI_Gather(sendarray, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);

Image file

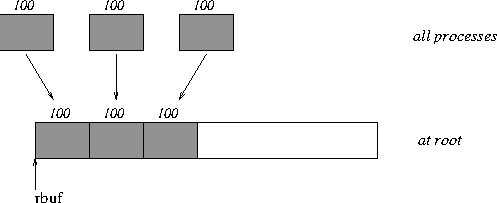

Figure 4: The root process gathers 100 ints from each process in the group.


Example Do the same as the previous example, but use a derived datatype. Note that the type cannot be the entire set of gsize*100 ints since type matching is defined pairwise between the root and each process in the gather.


    MPI_Comm comm;
    int gsize,sendarray[100];
    int root, *rbuf;
    MPI_Datatype rtype;
    ...
    MPI_Comm_size(comm, &gsize);
    MPI_Type_contiguous(100, MPI_INT, &rtype);
    MPI_Type_commit(&rtype);
    rbuf = (int *)malloc(gsize*100*sizeof(int));
    MPI_Gather(sendarray, 100, MPI_INT, rbuf, 1, rtype, root, comm);


Example Now have each process send 100 ints to root, but place each set (of 100) stride ints apart at receiving end. Use MPI_GATHERV and the displs argument to achieve this effect. Assume Image file . See Figure 5 .


    MPI_Comm comm;
    int gsize,sendarray[100];
    int root, *rbuf, stride;
    int *displs,i,*rcounts;

    ...

    MPI_Comm_size(comm, &gsize);
    rbuf = (int *)malloc(gsize*stride*sizeof(int));
    displs = (int *)malloc(gsize*sizeof(int));
    rcounts = (int *)malloc(gsize*sizeof(int));
    for (i=0; i<gsize; ++i) {
        displs[i] = i*stride;
        rcounts[i] = 100;
    }
    MPI_Gatherv(sendarray, 100, MPI_INT, rbuf, rcounts, displs, MPI_INT,
                                                               root, comm);
Note that the program is erroneous if stride < 100.

Image file

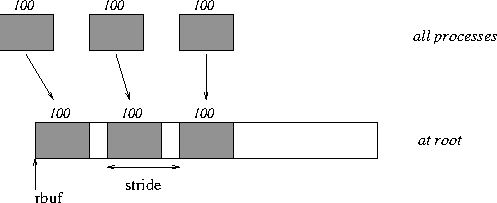

Figure 5: The root process gathers 100 ints from each process in the group, each set is placed stride ints apart.


Example Same as Example Examples using MPI_GATHER, MPI_GATHERV on the receiving side, but send the 100 ints from the 0th column of a 100×150 int array, in C. See Figure 6 .


    MPI_Comm comm;
    int gsize,sendarray[100][150];
    int root, *rbuf, stride;
    MPI_Datatype stype;
    int *displs,i,*rcounts;

    ...

    MPI_Comm_size(comm, &gsize);
    rbuf = (int *)malloc(gsize*stride*sizeof(int));
    displs = (int *)malloc(gsize*sizeof(int));
    rcounts = (int *)malloc(gsize*sizeof(int));
    for (i=0; i<gsize; ++i) {
        displs[i] = i*stride;
        rcounts[i] = 100;
    }
    /* Create datatype for 1 column of array
     */
    MPI_Type_vector(100, 1, 150, MPI_INT, &stype);
    MPI_Type_commit(&stype);
    MPI_Gatherv(sendarray, 1, stype, rbuf, rcounts, displs, MPI_INT,
                                                             root, comm);

Image file

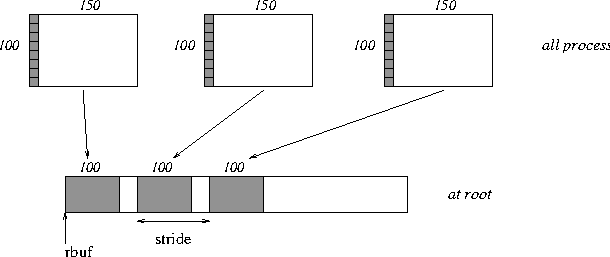

Figure 6: The root process gathers column 0 of a 100$ x $150 C array, and each set is placed stride ints apart.


Example Process i sends (100-i) ints from the i-th column of a 100 × 150 int array, in C. It is received into a buffer with stride, as in the previous two examples. See Figure 7 .


    MPI_Comm comm;
    int gsize,sendarray[100][150],*sptr;
    int root, *rbuf, stride, myrank;
    MPI_Datatype stype;
    int *displs,i,*rcounts;

    ...

    MPI_Comm_size(comm, &gsize);
    MPI_Comm_rank(comm, &myrank);
    rbuf = (int *)malloc(gsize*stride*sizeof(int));
    displs = (int *)malloc(gsize*sizeof(int));
    rcounts = (int *)malloc(gsize*sizeof(int));
    for (i=0; i<gsize; ++i) {
        displs[i] = i*stride;
        rcounts[i] = 100-i;     /* note change from previous example */
    }
    /* Create datatype for the column we are sending
     */
    MPI_Type_vector(100-myrank, 1, 150, MPI_INT, &stype);
    MPI_Type_commit(&stype);
    /* sptr is the address of start of "myrank" column
     */
    sptr = &sendarray[0][myrank];
    MPI_Gatherv(sptr, 1, stype, rbuf, rcounts, displs, MPI_INT,
                                                        root, comm);
Note that a different amount of data is received from each process.

Image file

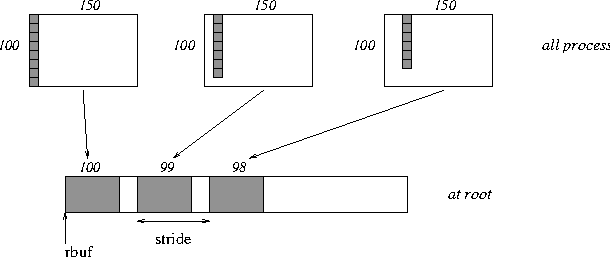

Figure 7: The root process gathers 100-i ints from column i of a 100$ x $150 C array, and each set is placed stride ints apart.


Example Same as Example Examples using MPI_GATHER, MPI_GATHERV , but done in a different way at the sending end. We create a datatype that causes the correct striding at the sending end so that we read a column of a C array. A similar thing was done in Example Examples , Section Examples .


    MPI_Comm comm;
    int gsize, sendarray[100][150], *sptr;
    int root, *rbuf, stride, myrank;
    MPI_Datatype stype;
    int *displs, i, *rcounts;

    ...

    MPI_Comm_size(comm, &gsize);
    MPI_Comm_rank(comm, &myrank);
    rbuf = (int *)malloc(gsize*stride*sizeof(int));
    displs = (int *)malloc(gsize*sizeof(int));
    rcounts = (int *)malloc(gsize*sizeof(int));
    for (i=0; i<gsize; ++i) {
        displs[i] = i*stride;
        rcounts[i] = 100-i;
    }
    /* Create datatype for one int, with extent of entire row
     */
    MPI_Type_create_resized( MPI_INT, 0, 150*sizeof(int), &stype);
    MPI_Type_commit(&stype);
    sptr = &sendarray[0][myrank];
    MPI_Gatherv(sptr, 100-myrank, stype, rbuf, rcounts, displs, MPI_INT,
                                                               root, comm);


Example Same as Example Examples using MPI_GATHER, MPI_GATHERV at sending side, but at receiving side we make the stride between received blocks vary from block to block. See Figure 8 .


    MPI_Comm comm;
    int gsize,sendarray[100][150],*sptr;
    int root, *rbuf, *stride, myrank, bufsize;
    MPI_Datatype stype;
    int *displs,i,*rcounts,offset;

    ...

    MPI_Comm_size(comm, &gsize);
    MPI_Comm_rank(comm, &myrank);

    stride = (int *)malloc(gsize*sizeof(int));
    ...
    /* stride[i] for i = 0 to gsize-1 is set somehow
     */

    /* set up displs and rcounts vectors first
     */
    displs = (int *)malloc(gsize*sizeof(int));
    rcounts = (int *)malloc(gsize*sizeof(int));
    offset = 0;
    for (i=0; i<gsize; ++i) {
        displs[i] = offset;
        offset += stride[i];
        rcounts[i] = 100-i;
    }
    /* the required buffer size for rbuf is now easily obtained
     */
    bufsize = displs[gsize-1]+rcounts[gsize-1];
    rbuf = (int *)malloc(bufsize*sizeof(int));
    /* Create datatype for the column we are sending
     */
    MPI_Type_vector(100-myrank, 1, 150, MPI_INT, &stype);
    MPI_Type_commit(&stype);
    sptr = &sendarray[0][myrank];
    MPI_Gatherv(sptr, 1, stype, rbuf, rcounts, displs, MPI_INT,
                                                        root, comm);

Image file

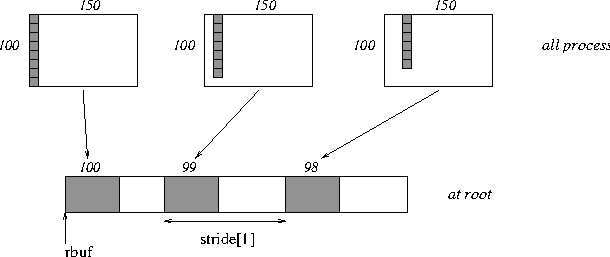

Figure 8: The root process gathers 100-i ints from column i of a 100$ x $150 C array, and each set is placed stride[i] ints apart (a varying stride).


Example Process i sends num ints from the i-th column of a 100 × 150 int array, in C. The complicating factor is that the various values of num are not known to root, so a separate gather must first be run to find these out. The data is placed contiguously at the receiving end.


    MPI_Comm comm;
    int gsize,sendarray[100][150],*sptr;
    int root, *rbuf, myrank;
    MPI_Datatype stype;
    int *displs,i,*rcounts,num;

    ...

    MPI_Comm_size(comm, &gsize);
    MPI_Comm_rank(comm, &myrank);

    /* First, gather nums to root
     */
    rcounts = (int *)malloc(gsize*sizeof(int));
    MPI_Gather(&num, 1, MPI_INT, rcounts, 1, MPI_INT, root, comm);
    /* root now has correct rcounts, using these we set displs[] so
     * that data is placed contiguously (or concatenated) at receive end
     */
    displs = (int *)malloc(gsize*sizeof(int));
    displs[0] = 0;
    for (i=1; i<gsize; ++i) {
        displs[i] = displs[i-1]+rcounts[i-1];
    }
    /* And, create receive buffer
     */
    rbuf = (int *)malloc(gsize*(displs[gsize-1]+rcounts[gsize-1])
                                                             *sizeof(int));
    /* Create datatype for one int, with extent of entire row
     */
    MPI_Type_create_resized( MPI_INT, 0, 150*sizeof(int), &stype);
    MPI_Type_commit(&stype);
    sptr = &sendarray[0][myrank];
    MPI_Gatherv(sptr, num, stype, rbuf, rcounts, displs, MPI_INT,
                                                               root, comm);
