13.8. Examples

PreviousUpNext
Up: One-Sided Communications Next: External Interfaces Previous: Registers and Compiler Optimizations

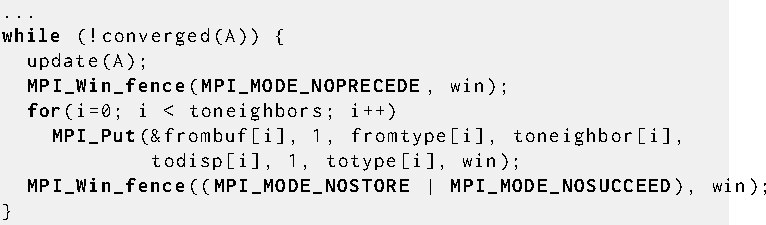

Example The following example shows a generic loosely synchronous, iterative code, using MPI_FENCE for synchronization. The window at each MPI process consists of array A, which contains the origin and target buffers of the put operations.

Image file

The same code could be written with get rather than put. Note that, during the communication phase, each window is concurrently read (as origin buffer of puts) and written (as target buffer of puts). This is OK, provided that there is no overlap between the target buffer of a put and another communication buffer.

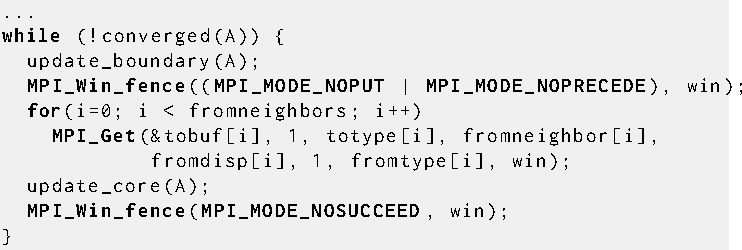

Example Same generic example, with more computation/communication overlap. We assume that the update phase is broken into two subphases: the first, where the ``boundary,'' which is involved in communication, is updated, and the second, where the ``core,'' which neither uses nor provides communicated data, is updated.

Image file

The get communication can be concurrent with the core update, since they do not access the same locations, and the local update of the origin buffer by the get operation can be concurrent with the local update of the core by the update_core call. In order to get similar overlap with put communication we would need to use separate windows for the core and for the boundary. This is required because we do not allow local stores to be concurrent with puts on the same, or on overlapping, windows.

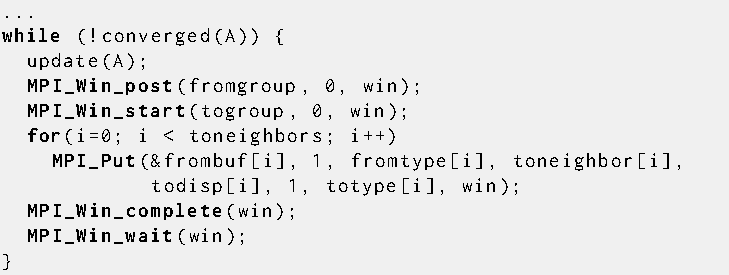

Example Same code as in Example Examples, rewritten using post-start-complete-wait.

Image file

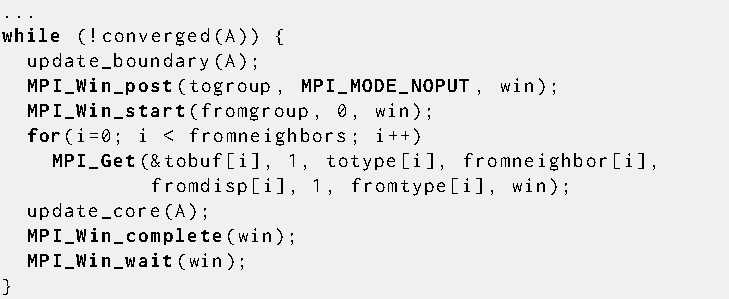

Example Same example, with post-start-complete-wait, as in Example Examples.

Image file

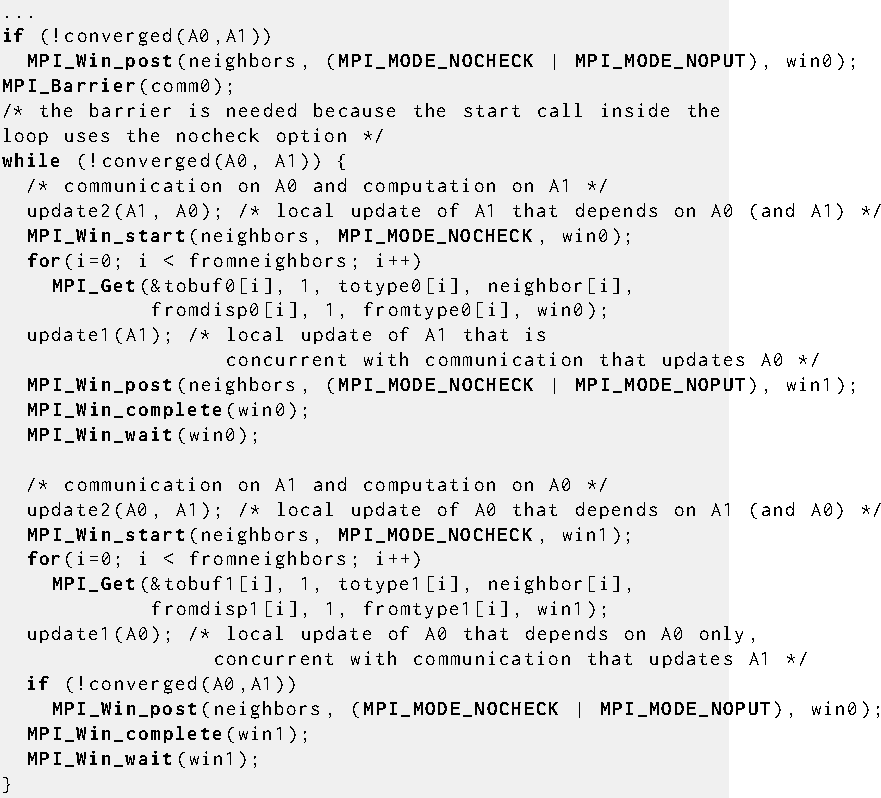

Example A checkerboard, or double buffer communication pattern, that allows more computation/communication overlap. Array A0 is updated using values of array A1, and vice versa. We assume that communication is symmetric: if process A gets data from process B, then process B gets data from process A. Window wini consists of array Ai.

Image file

An MPI process posts the local window associated with win0 before it completes RMA accesses to the remote windows associated with win1. When the call to MPI_WIN_WAIT on win1 returns, then all neighbors of the calling MPI process have posted the windows associated with win0. Conversely, when the call to MPI_WIN_WAIT on win0 returns, then all neighbors of the calling MPI process have posted the windows associated with win1. Therefore, the MPI_MODE_NOCHECK option can be used with the calls to MPI_WIN_START.

Put operations can be used, instead of get operations, if the area of array A0 (resp. A1) used by update(A1, A0) (resp. update(A0, A1)) is disjoint from the area modified by the RMA operation. On some systems, a put operation may be more efficient than a get operation, as it requires information exchange only in one direction.

In the next several examples, for conciseness, the expression

Image file

means to perform a get-accumulate operation with the result buffer (given by result_addr in the description of MPI_GET_ACCUMULATE) on the left side of the assignment, in this case, z. This format is also used with MPI_COMPARE_AND_SWAP and MPI_COMM_SIZE. Process B... refers to any process other than A.

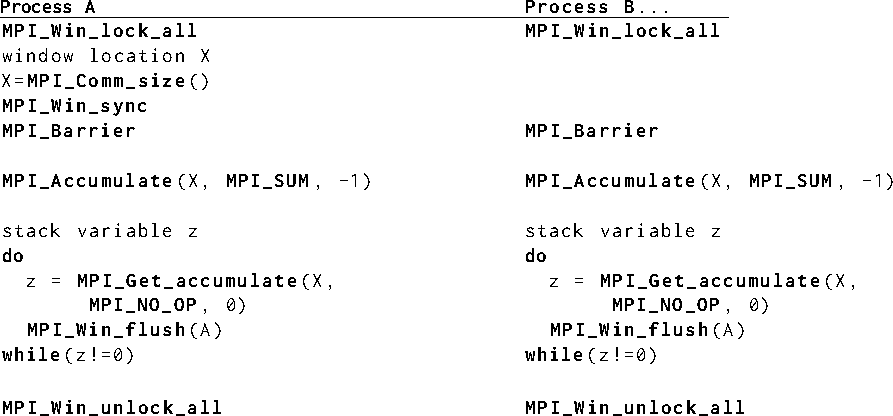

Example The following example implements a naive, nonscalable counting semaphore. The example demonstrates the use of MPI_WIN_SYNC to manipulate the public copy of X, as well as MPI_WIN_FLUSH to complete operations without closing the access epoch opened with MPI_WIN_LOCK_ALL. To avoid the rules regarding synchronization of the public and private copies of windows, MPI_ACCUMULATE and MPI_GET_ACCUMULATE are used to write to or read from the local public copy.

Image file

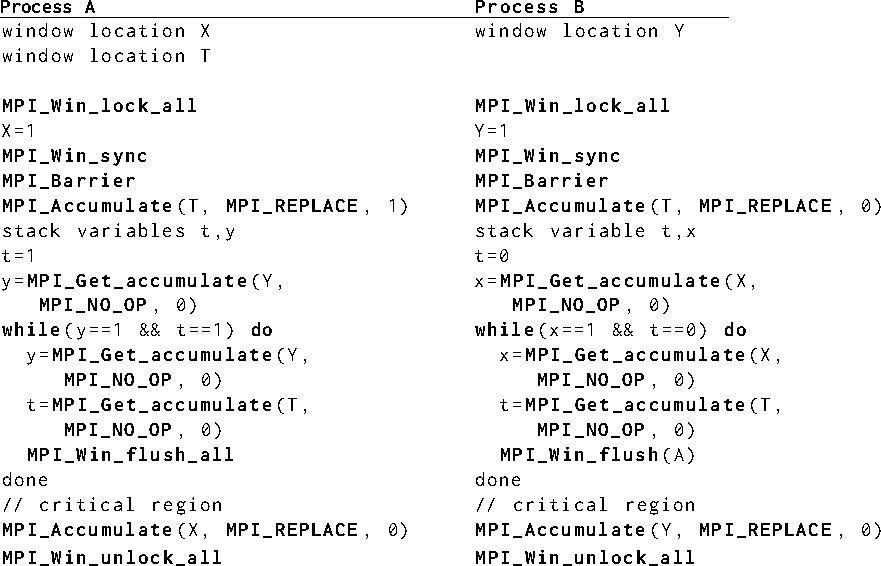

Example Implementing a critical region between two MPI processes (Peterson's algorithm). Despite their appearance in the following example, MPI_WIN_LOCK_ALL and MPI_WIN_UNLOCK_ALL are not collective calls, but it is frequently useful to open shared access epochs to all MPI processes from all other MPI processes in a window. Once the access epochs are opened, accumulate operations as well as flush and sync synchronization can be used to read from or write to the public copy of the window.

Image file

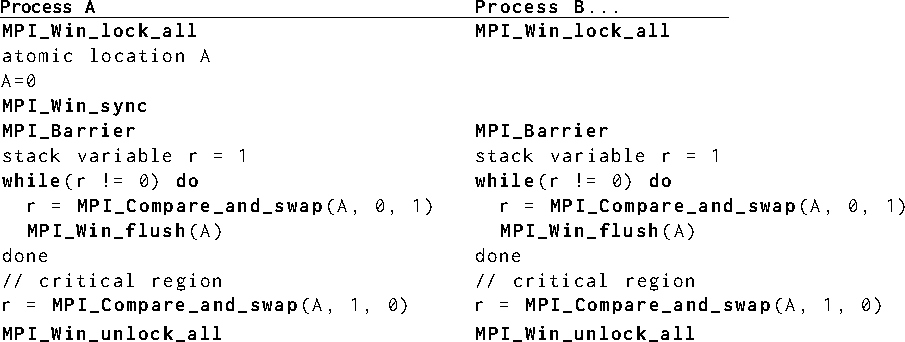

Example Implementing a critical region between multiple MPI processes with compare and swap. The call to MPI_WIN_SYNC is necessary on Process A after local initialization of A to guarantee the public copy has been updated with the initialization value found in the private copy. It would also be valid to call MPI_ACCUMULATE with MPI_REPLACE to directly initialize the public copy. A call to MPI_WIN_FLUSH would be necessary to assure A in the public copy of Process A had been updated before the barrier.

Image file

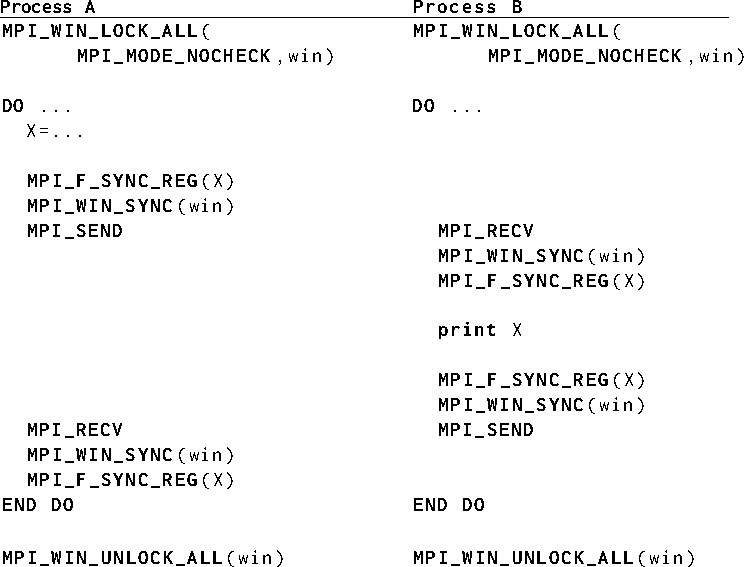

ExampleThe following example demonstrates the proper synchronization in the unified memory model when a data transfer is implemented with load and store accesses in the case of windows in shared memory (instead of using MPI_PUT or MPI_GET) and the synchronization between MPI processes is performed using point-to-point communication. The synchronization between MPI processes must be supplemented with a memory synchronization through calls to MPI_WIN_SYNC, which act locally as a processor-memory barrier. In Fortran, if MPI_ASYNC_PROTECTS_NONBLOCKING is .FALSE. or the variable X is not declared as ASYNCHRONOUS, reordering of the accesses to the variable X must be prevented with MPI_F_SYNC_REG operations. (No equivalent function is needed in C.)

The variable X is contained within a shared memory window and X corresponds to the same memory location at both processes. The first call to MPI_WIN_SYNC performed by process A ensures completion of the load/store accesses issued by process A. The first call to MPI_WIN_SYNC performed by process B ensures that process A's updates to X are visible to process B. Similarly, the second call to MPI_WIN_SYNC on each process ensures correct ordering of the point-to-point communication and thus that the load/store operations on process B have completed before any subsequent load/store accesses to the variable X in process A.

Image file

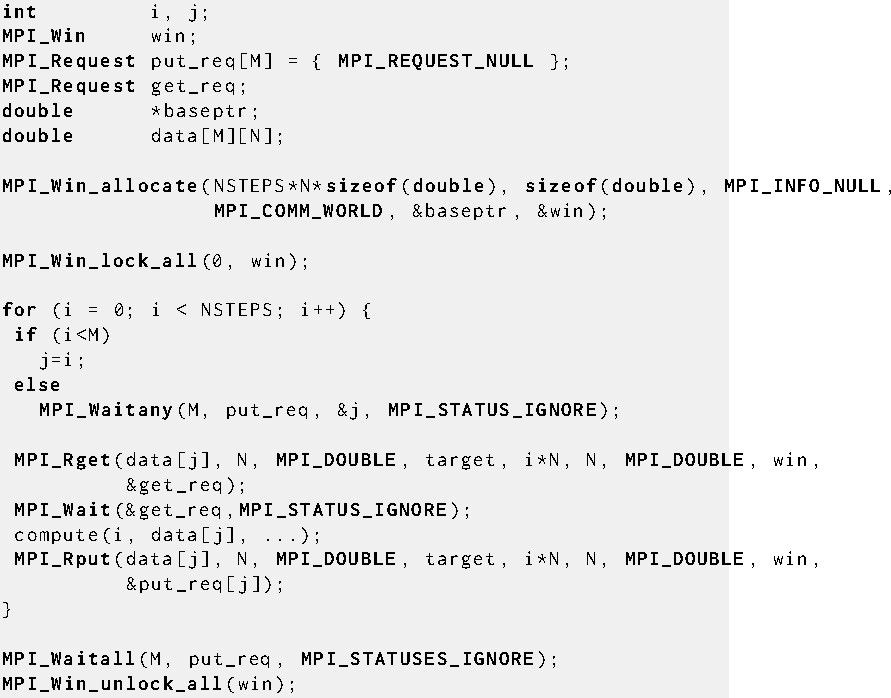

Example The following example shows how request-based operations can be used to overlap communication with computation. Each MPI process fetches, processes, and writes the result for NSTEPS chunks of data. Instead of a single buffer, M local buffers are used to allow up to M communication operations to overlap with computation.

Image file

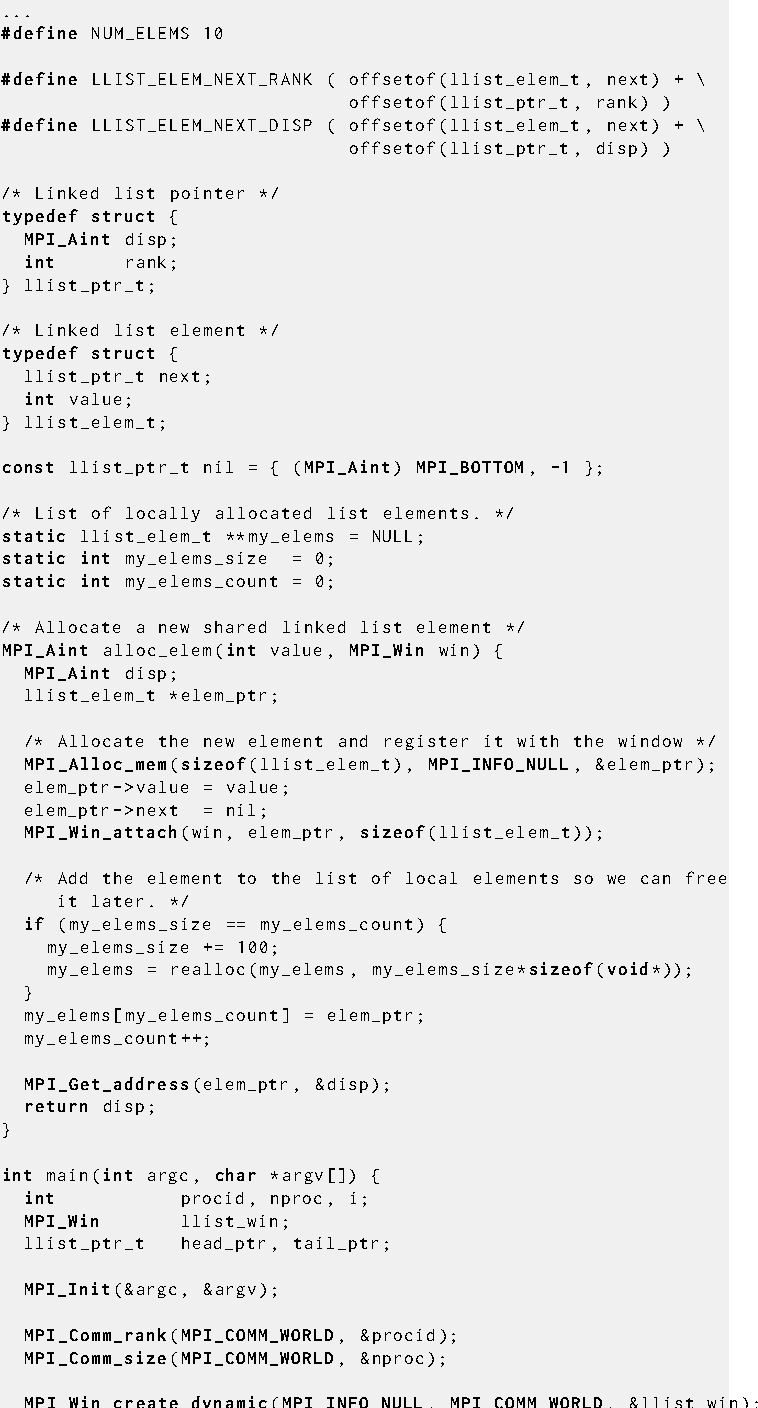

Example The following example constructs a distributed shared linked list using dynamic windows. Initially process 0 creates the head of the list, attaches it to the window, and broadcasts the pointer to all MPI processes. All MPI processes then concurrently append N new elements to the list. When an MPI process attempts to attach its element to the tail of the list it may discover that its tail pointer is stale and it must chase ahead to the new tail before the element can be attached. This example requires some modification to work in an environment where the layout of the structures is different on different MPI processes.

Image file
