12.2.1. Starting MPI Processes

When using the World Model, MPI is initialized by calling either MPI_INIT or MPI_INIT_THREAD.

C binding
int MPI_Init(int *argc, char ***argv)
Fortran 2008 binding
MPI_Init(ierror)

INTEGER, OPTIONAL, INTENT(OUT) :: ierror
Fortran binding
MPI_INIT(IERROR)

INTEGER IERROR

In the World Model, an MPI program must contain exactly one call to an MPI initialization routine: MPI_INIT or MPI_INIT_THREAD. MPI_COMM_WORLD and MPI_COMM_SELF are not valid for use as communicators prior to invocation of MPI_INIT or MPI_INIT_THREAD. Subsequent calls to either of these initialization routines are erroneous. A subset of MPI functions may be invoked before MPI initialization routines are called, see Section MPI Functionality that is Always Available. The procedures MPI_INIT and MPI_INIT_THREAD accept either the argc and argv that are provided by the arguments to main or NULL.

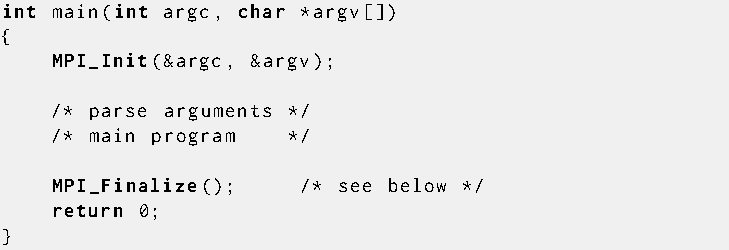

Example Initializing MPI using MPI_INIT

The Fortran version takes only IERROR.

Conforming implementations of MPI are required to allow applications to pass NULL for both the argc and argv arguments of main in C.

Failures may disrupt the execution of the program before or during MPI initialization. A high-quality implementation shall not deadlock during MPI initialization, even in the presence of failures. Except for functions with the MPI_T_ prefix, failures in MPI operations prior to or during MPI initialization are reported by invoking the initial error handler. Users can use the mpi_initial_errhandler info key during the launch of MPI processes (e.g., MPI_COMM_SPAWN / MPI_COMM_SPAWN_MULTIPLE, or mpiexec) to set a nonfatal initial error handler before MPI initialization. When the initial error handler is set to MPI_ERRORS_ABORT, raising an error before or during initialization aborts the local MPI process (i.e., it is similar to calling MPI_ABORT on MPI_COMM_SELF). An implementation may not always be capable of determining, before MPI initialization, what constitutes the local MPI process, or the set of connected processes. In this case, errors before initialization may cause a different set of MPI processes to abort than specified. During MPI initialization, the initial error handler is associated with MPI_COMM_WORLD, MPI_COMM_SELF, and the communicator returned by MPI_COMM_GET_PARENT (if any).

Advice to implementors.

Some failures may leave MPI in an undefined state, or raise an error before the error handling capabilities are fully operational, in which cases the implementation may be incapable of providing the desired error handling behavior. Of note, in some implementations, the notion of an MPI process is not clearly established in the early stages of MPI initialization (for example, when the implementation considers threads that called MPI_INIT as independent MPI processes); in this case, before MPI is initialized, the MPI_ERRORS_ABORT error handler may abort what would have become multiple MPI processes.

When a failure occurs during MPI initialization, the implementation may decide to return MPI_SUCCESS from the MPI initialization function instead of raising an error. It is recommended that an implementation masks an initialization error only when it expects that later MPI calls will result in well-specified behavior (i.e., barring additional failures, either the outcome of any call will be correct, or the call will raise an appropriate error). For example, it may be difficult for an implementation to avoid unspecified behavior when the group of MPI_COMM_WORLD does not contain the same set of MPI processes at all members of the communicator, or if the communicator returned from MPI_COMM_GET_PARENT was not initialized correctly. ( End of advice to implementors.)
After MPI is initialized, the application can access information about the execution environment by querying the predefined info object MPI_INFO_ENV. The following keys are predefined for this object, corresponding to the arguments of MPI_COMM_SPAWN or of mpiexec:

"command":

Name of program executed.

"argv":

Space separated arguments to command.

"maxprocs":

Maximum number of MPI processes to start.

"mpi_initial_errhandler":

Name of the initial errhandler.

mpi_memory_alloc_kinds:

Memory allocation kinds supported by the MPI library (see Section Memory Allocation Info).

"soft":

Allowed values for number of processors.

"host":

Hostname.

"arch":

Architecture name.

"wdir":

Working directory of the MPI process.

"file":

Value is the name of a file in which additional information is specified.

"thread_level":

Requested level of thread support, if requested before the program started execution.

Advice to users.

If one of the argv arguments contains a space, there is no way to tell from the value of the argv info key whether a space is part of the argument or is separating different arguments. ( End of advice to users.)
The info object MPI_INFO_ENV need not contain a (key,value) pair for each of these predefined keys; the set of (key,value) pairs provided is implementation-dependent. Implementations may provide additional, implementation specific, (key,value) pairs.

In cases where the MPI processes were started with MPI_COMM_SPAWN_MULTIPLE or, equivalently, with a startup mechanism that supports multiple process specifications, then the values stored in the info object MPI_INFO_ENV at a process are those values that affect the local MPI process.

Example If MPI is started with a call to

    mpiexec -n 5 -arch x86_64 ocean : -n 10 -arch power9 atmos

Advice to users.

The values passed in MPI_INFO_ENV are the values of the arguments passed to the mechanism that started the MPI execution---not the actual value provided. Thus, the value associated with maxprocs is the number of MPI processes requested; it can be larger than the actual number of processes obtained, if the soft option was used. ( End of advice to users.)

Advice to implementors.

High-quality implementations will provide a (key,value) pair for each parameter that can be passed to the command that starts an MPI program. ( End of advice to implementors.)

The following function may be used to initialize MPI, and to initialize the MPI thread environment, instead of MPI_INIT.

This call initializes MPI in the same way that a call to MPI_INIT would. In addition, it initializes the thread environment. The argument required is used to specify the desired level of thread support. The possible values are listed in increasing order of thread support.

MPI_THREAD_SINGLE:

Only one thread will execute.

MPI_THREAD_FUNNELED:

The process may be multithreaded, but the application must ensure that only the main thread makes MPI calls (for the definition of main thread, see MPI_IS_THREAD_MAIN on page Starting MPI Processes).

MPI_THREAD_SERIALIZED:

The process may be multithreaded, and multiple threads may make MPI calls, but only one at a time: MPI calls are not made concurrently from two distinct threads (all MPI calls are ``serialized'').

MPI_THREAD_MULTIPLE:

Multiple threads may call MPI, with no restrictions.

Different processes in MPI_COMM_WORLD may require different levels of thread support.

The call returns in provided information about the actual level of thread support that will be provided by MPI. It can be one of the four values listed above.

The level(s) of thread support that can be provided by MPI_INIT_THREAD will depend on the implementation, and may depend on information provided by the user before the program started to execute (e.g., with arguments to mpiexec). If possible, the call will return provided = required. Failing this, the call will return the least supported level such that provided > required (thus providing a stronger level of support than required by the user). Finally, if the user requirement cannot be satisfied, then the call will return in provided the highest supported level.

A thread compliant MPI implementation will be able to return provided = MPI_THREAD_MULTIPLE. Such an implementation may always return provided = MPI_THREAD_MULTIPLE, irrespective of the value of required.

An MPI library that is not thread compliant must always return provided = MPI_THREAD_SINGLE, even if MPI_INIT_THREAD is called on a multithreaded process. The library should also return correct values for the MPI calls that can be executed before initialization, even if multiple threads have been spawned.

Rationale.

Such code is erroneous, but if the MPI initialization is performed by a library, the error cannot be detected until MPI_INIT_THREAD is called. The requirements in the previous paragraph ensure that the error can be properly detected. ( End of rationale.)
A call to MPI_INIT has the same effect as a call to MPI_INIT_THREAD with a required = MPI_THREAD_SINGLE.

Vendors may provide (implementation dependent) means to specify the level(s) of thread support available when the MPI program is started, e.g., with arguments to mpiexec. This will affect the outcome of calls to MPI_INIT and MPI_INIT_THREAD. Suppose, for example, that an MPI program has been started so that only MPI_THREAD_MULTIPLE is available. Then MPI_INIT_THREAD will return provided = MPI_THREAD_MULTIPLE, irrespective of the value of required; a call to MPI_INIT will also initialize the MPI thread support level to MPI_THREAD_MULTIPLE. Suppose, instead, that an MPI program has been started so that all four levels of thread support are available. Then, a call to MPI_INIT_THREAD will return provided = required; alternatively, a call to MPI_INIT will initialize the MPI thread support level to MPI_THREAD_SINGLE.

Rationale.

Various optimizations are possible when MPI code is executed single-threaded, or is executed on multiple threads, but not concurrently: mutual exclusion code may be omitted. Furthermore, if only one thread executes, then the MPI library can use library functions that are not thread safe, without risking conflicts with user threads. Also, the model of one communication thread, multiple computation threads fits many applications well, e.g., if the process code is a sequential Fortran/C program with MPI calls that has been parallelized by a compiler for execution on an SMP node, in a cluster of SMPs, then the process computation is multithreaded, but MPI calls will likely execute on a single thread.

The design accommodates a static specification of the thread support level, for environments that require static binding of libraries, and for compatibility for current multithreaded MPI codes. ( End of rationale.)

Advice to implementors.

If provided is not MPI_THREAD_SINGLE then the MPI library should not invoke C or Fortran library calls that are not thread safe, e.g., in an environment where malloc is not thread safe, then malloc should not be used by the MPI library.

Some implementors may want to use different MPI libraries for different levels of thread support. They can do so using dynamic linking and selecting which library will be linked when MPI_INIT_THREAD is invoked. If this is not possible, then optimizations for lower levels of thread support will occur only when the level of thread support required is specified at link time.

Note that required need not be the same value on all processes of MPI_COMM_WORLD. ( End of advice to implementors.)
As with MPI_INIT, discussed in Section Starting MPI Processes, the version for ISO C accepts the argc and argv that are provided by the arguments to main or NULL for both arguments.

The following function can be used to query the current level of thread support.

The call returns in provided the current level of thread support, which will be the value returned in provided by MPI_INIT_THREAD, if MPI was initialized by a call to MPI_INIT_THREAD. This function is only applicable when using the World Model to initialize MPI. In the case of applications using both the World Model and the Sessions Model, this function only returns the thread support level returned in provided by MPI_INIT_THREAD.

This function can be called by a thread to determine if it is the main thread (the thread that called MPI_INIT or MPI_INIT_THREAD). This function is only applicable when using the World Model to initialize MPI. In the case of applications using both the World Model and the Sessions Model, the behavior of this procedure is the same as if the application were only using the World Model.

All routines listed in this section must be supported by all MPI implementations.

Rationale.

MPI libraries are required to provide these calls even if they do not support threads, so that portable code that contains invocations to these functions can link correctly. MPI_INIT continues to be supported so as to provide compatibility with current MPI codes. ( End of rationale.)

Advice to users.

It is possible to spawn threads before MPI is initialized, but MPI_COMM_WORLD and MPI_COMM_SELF cannot be used until the World Model is active, i.e., until MPI_INIT_THREAD is invoked by one thread (which, thereby, becomes the main thread). In particular, it is possible to enter the MPI execution with a multithreaded process.

In the World Model, the level of thread support provided is a global property of the MPI process that can be specified only once, when MPI is initialized on that process (or before). Portable third party libraries have to be written so as to accommodate any provided level of thread support. Otherwise, their usage will be restricted to specific level(s) of thread support. If such a library can run only with specific level(s) of thread support, e.g., only with MPI_THREAD_MULTIPLE, then MPI_QUERY_THREAD can be used to check whether the user initialized MPI to the correct level of thread support. ( End of advice to users.)
