8.6.3. Inter-Communication Examples

PreviousUpNext
Up: Inter-Communication Next: Example 1: Three-Group ``Pipeline''' Previous: Inter-Communicator Operations


PreviousUpNext
Up: Inter-Communication Next: Example 1: Three-Group ``Pipeline''' Previous: Inter-Communicator Operations


8.6.3.1. Example 1: Three-Group ``Pipeline'''

PreviousUpNext
Up: Inter-Communication Examples Next: Example 2: Three-Group ``Ring''' Previous: Inter-Communication Examples

Image file

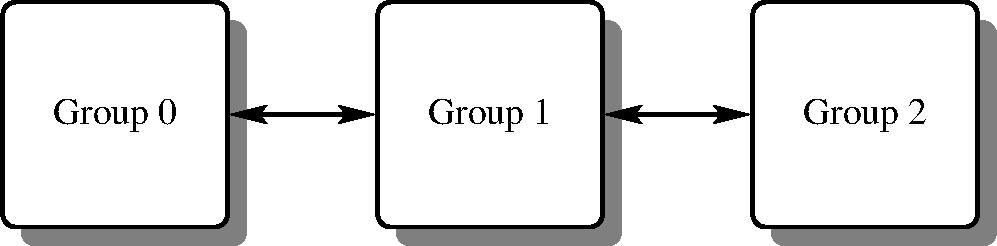

Figure 20: Three-group pipeline

As shown in Figure 20, groups 0 and 1 communicate. Groups 1 and 2 communicate. Therefore, group 0 requires one inter-communicator, group 1 requires two inter-communicators, and group 2 requires 1 inter-communicator.

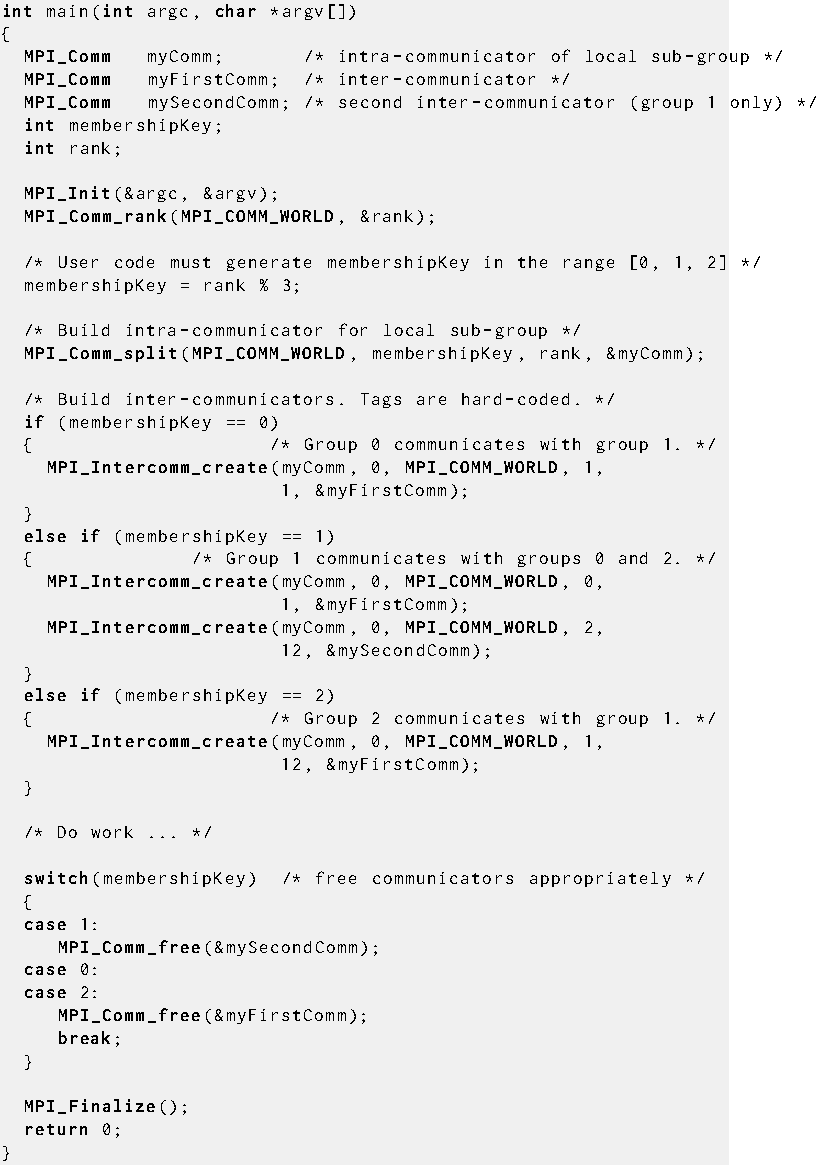

Example

Image file


PreviousUpNext
Up: Inter-Communication Examples Next: Example 2: Three-Group ``Ring''' Previous: Inter-Communication Examples


8.6.3.2. Example 2: Three-Group ``Ring'''

PreviousUpNext
Up: Inter-Communication Examples Next: Caching Previous: Example 1: Three-Group ``Pipeline'''

Image file

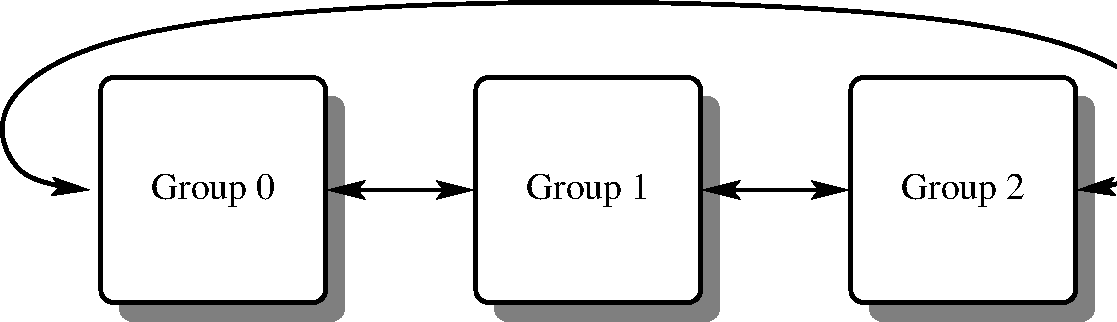

Figure 21: Three-group ring

As shown in Figure 21, groups 0 and 1 communicate. Groups 1 and 2 communicate. Groups 0 and 2 communicate. Therefore, each requires two inter-communicators.

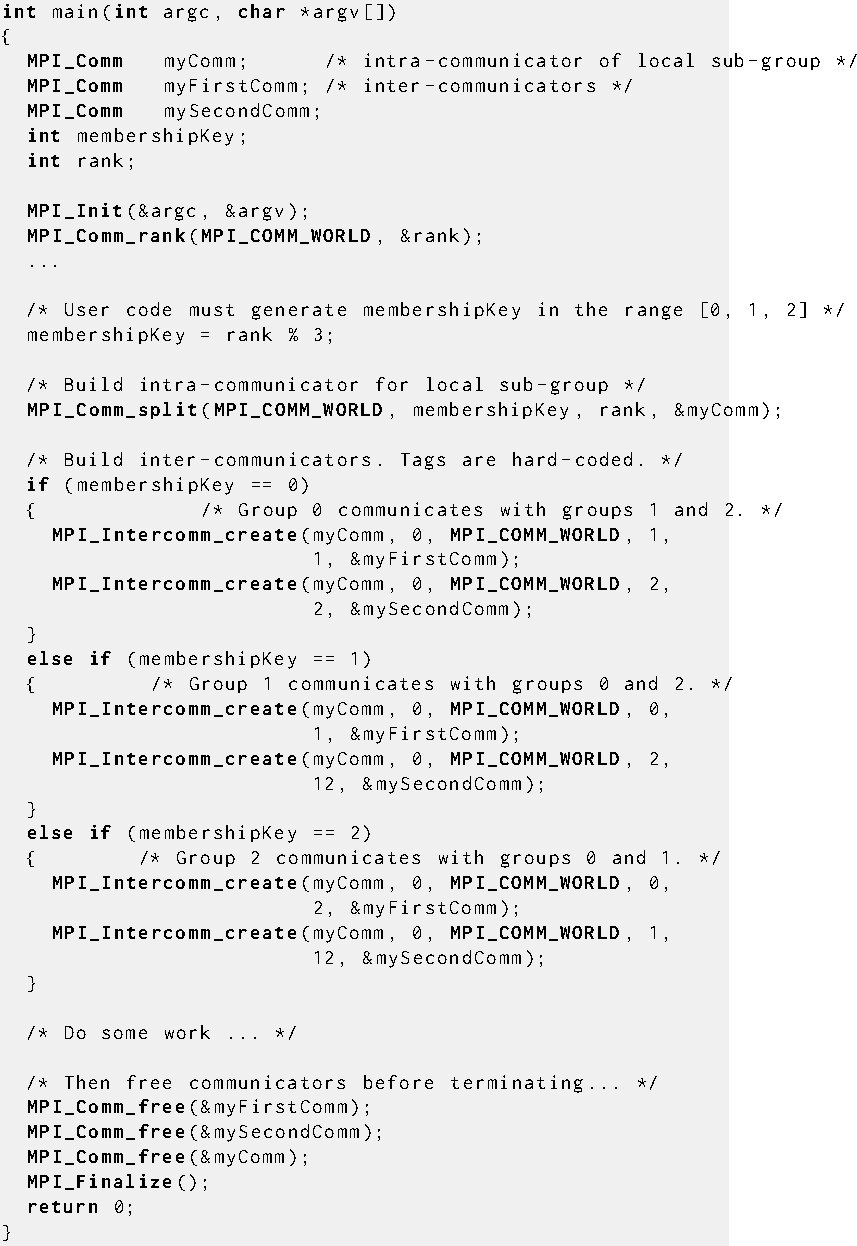

Example

Image file


PreviousUpNext
Up: Inter-Communication Examples Next: Caching Previous: Example 1: Three-Group ``Pipeline'''
