7.2.2. Applying Collective Operations to Inter-Communicators
Up: Communicator Argument
Next: Specifics for Inter-Communicator Collective Operations
Previous: Specifics for Intra-Communicator Collective Operations
To understand how collective operations apply to inter-communicators,
we can view most MPI intra-communicator
collective operations as fitting one of the following categories (see, for
instance,
[64]):
-
All-To-All
-
All MPI processes contribute to the result. All MPI processes
receive the result.
- MPI_ALLGATHER, MPI_IALLGATHER, MPI_ALLGATHER_INIT,
MPI_ALLGATHERV, MPI_IALLGATHERV, MPI_ALLGATHERV_INIT
- MPI_ALLTOALL, MPI_IALLTOALL, MPI_ALLTOALL_INIT,
MPI_ALLTOALLV, MPI_IALLTOALLV, MPI_ALLTOALLV_INIT,
MPI_ALLTOALLW, MPI_IALLTOALLW, MPI_ALLTOALLW_INIT
- MPI_ALLREDUCE, MPI_IALLREDUCE, MPI_ALLREDUCE_INIT,
MPI_REDUCE_SCATTER_BLOCK, MPI_IREDUCE_SCATTER_BLOCK,
MPI_REDUCE_SCATTER_BLOCK_INIT,
MPI_REDUCE_SCATTER, MPI_IREDUCE_SCATTER,
MPI_REDUCE_SCATTER_INIT
- MPI_BARRIER, MPI_IBARRIER, MPI_BARRIER_INIT
-
All-To-One
-
All MPI processes contribute to the result. One MPI process
receives the result.
- MPI_GATHER, MPI_IGATHER, MPI_GATHER_INIT,
MPI_GATHERV, MPI_IGATHERV, MPI_GATHERV_INIT
- MPI_REDUCE, MPI_IREDUCE, MPI_REDUCE_INIT,
-
One-To-All
-
One MPI process contributes to the result. All MPI processes
receive the result.
- MPI_BCAST, MPI_IBCAST, MPI_BCAST_INIT
- MPI_SCATTER, MPI_ISCATTER, MPI_SCATTER_INIT,
MPI_SCATTERV, MPI_ISCATTERV, MPI_SCATTERV_INIT
-
Other:
-
Collective operations that do not fit into one of the above
categories.
- MPI_SCAN, MPI_ISCAN, MPI_SCAN_INIT
MPI_EXSCAN, MPI_IEXSCAN, MPI_EXSCAN_INIT
The data movement patterns of MPI_SCAN, MPI_ISCAN,
MPI_SCAN_INIT, MPI_EXSCAN, MPI_IEXSCAN and MPI_EXSCAN_INIT
do not fit this taxonomy.
The application of collective communication to
inter-communicators is best described in terms of two groups.
For example, an all-to-all
MPI_ALLGATHER operation can be described as collecting data
from all members of one group with the result appearing in all members
of the other group (see Figure 5). As another
example, a one-to-all MPI_BCAST operation sends data from one
member of one group to all members of the other group.
Collective computation operations such as MPI_REDUCE_SCATTER have
a
similar interpretation (see Figure 6).
For intra-communicators, these two groups
are the same. For inter-communicators, these two groups are distinct.
For the all-to-all operations, each such operation is described in two phases,
so that it
has a symmetric, full-duplex behavior.
The following collective operations also apply to inter-communicators:
- MPI_BARRIER, MPI_IBARRIER, MPI_BARRIER_INIT,
- MPI_BCAST, MPI_IBCAST, MPI_BCAST_INIT,
- MPI_GATHER, MPI_IGATHER, MPI_GATHER_INIT,
MPI_GATHERV, MPI_IGATHERV, MPI_GATHERV_INIT,
- MPI_SCATTER, MPI_ISCATTER, MPI_SCATTER_INIT,
MPI_SCATTERV, MPI_ISCATTERV, MPI_SCATTERV_INIT,
- MPI_ALLGATHER, MPI_IALLGATHER, MPI_ALLGATHER_INIT,
MPI_ALLGATHERV, MPI_IALLGATHERV, MPI_ALLGATHERV_INIT,
- MPI_ALLTOALL, MPI_IALLTOALL, MPI_ALLTOALL_INIT,
MPI_ALLTOALLV, MPI_IALLTOALLV, MPI_ALLTOALLV_INIT,
MPI_ALLTOALLW, MPI_IALLTOALLW, MPI_ALLTOALLW_INIT,
- MPI_ALLREDUCE, MPI_IALLREDUCE, MPI_ALLREDUCE_INIT,
MPI_REDUCE, MPI_IREDUCE, MPI_REDUCE_INIT,
- MPI_REDUCE_SCATTER_BLOCK, MPI_IREDUCE_SCATTER_BLOCK,
MPI_REDUCE_SCATTER_BLOCK_INIT, MPI_REDUCE_SCATTER,
MPI_IREDUCE_SCATTER, MPI_REDUCE_SCATTER_INIT.

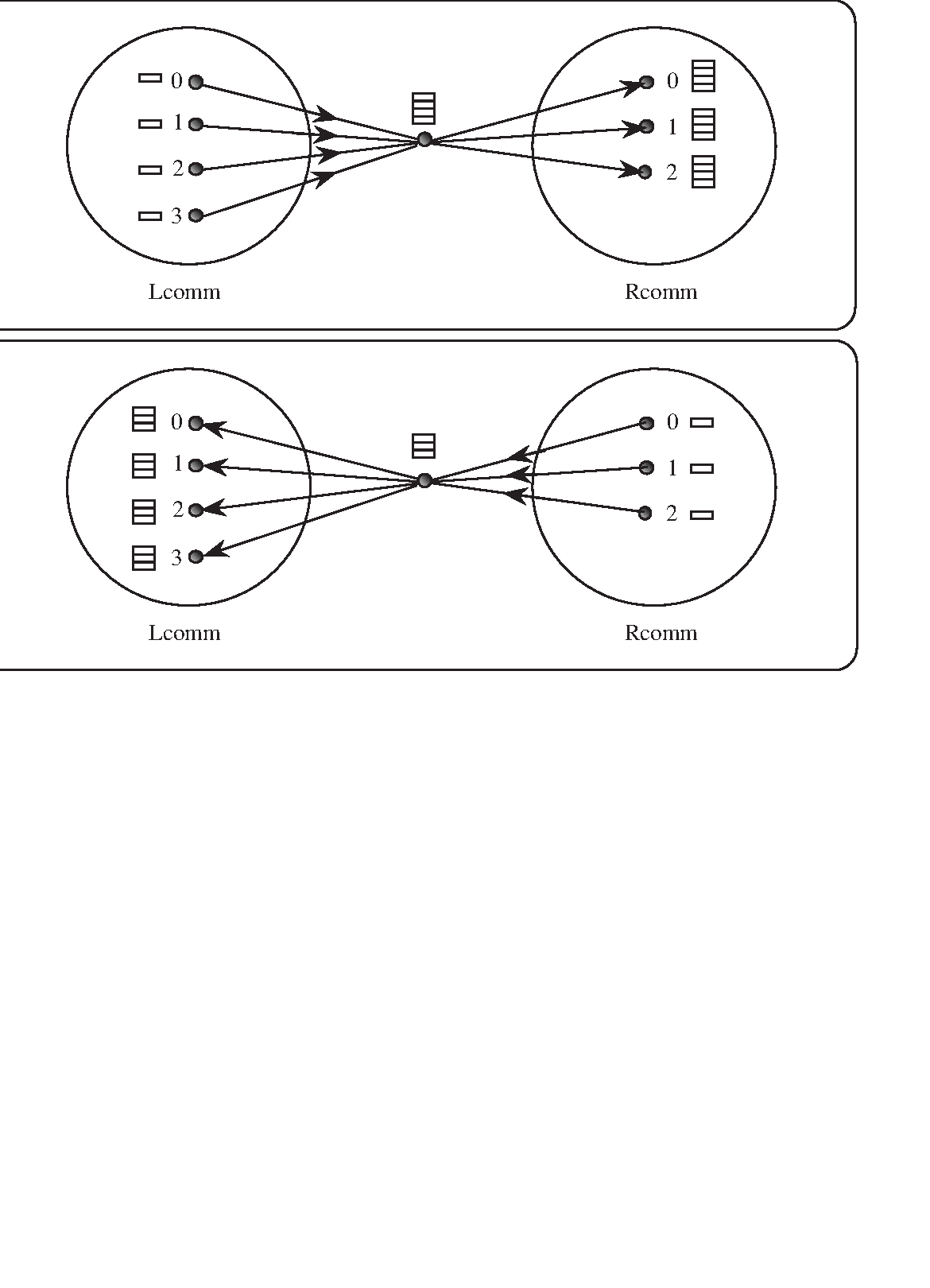

Figure 5: Inter-communicator allgather. The focus of data to one MPI process is
represented, not mandated by the semantics.
The two phases do allgathers in both directions.

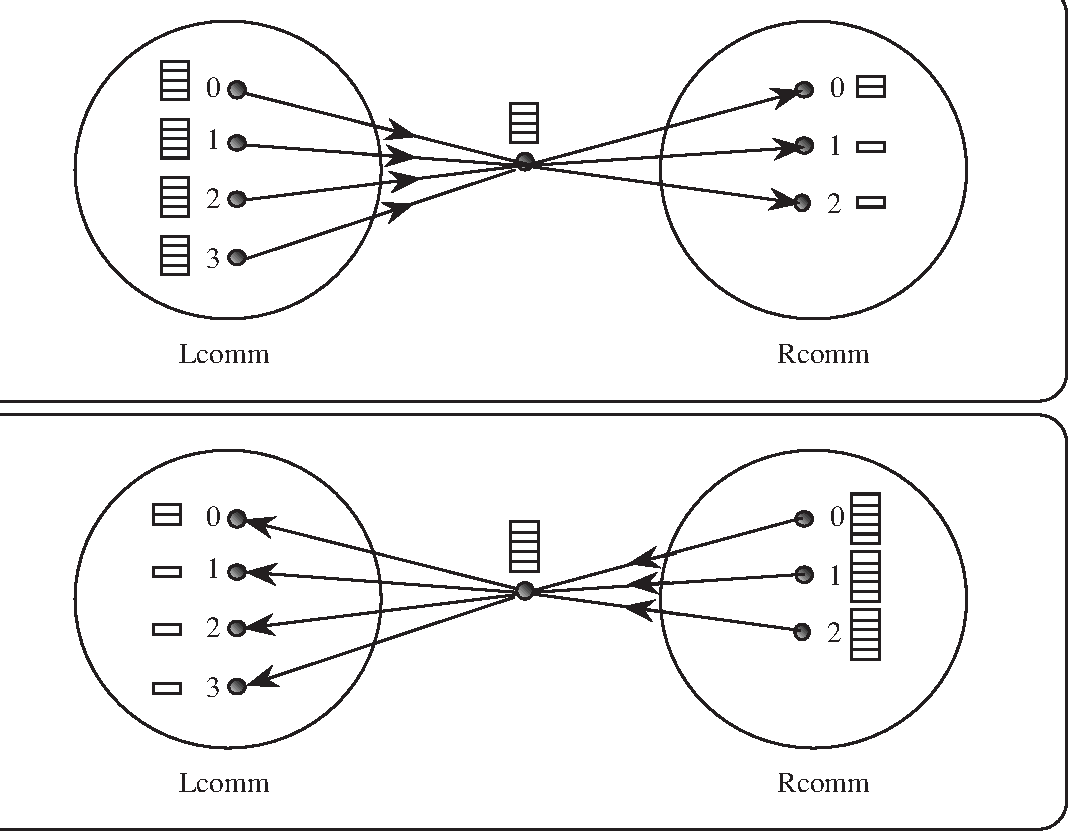

Figure 6: Inter-communicator reduce-scatter. The focus of data to one MPI process
is represented, not mandated by the semantics.
The two phases do reduce-scatters in both directions.
