390. Prototype Definitions

390.1. C Bindings

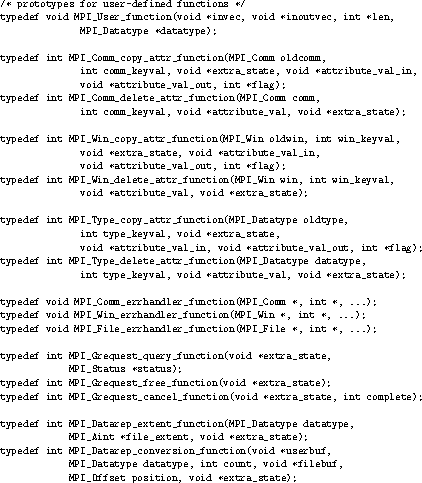

The following are defined C typedefs for user-defined functions, also included in the file mpi.h.

390.2. Fortran 2008 Bindings with the mpi_f08 Module

The callback prototypes when using the Fortran mpi_f08 module are shown below:

The user-function argument to MPI_Op_create should be declared according to:

SUBROUTINE MPI_User_function(invec, inoutvec, len, datatype)
USE, INTRINSIC :: ISO_C_BINDING, ONLY : C_PTR
TYPE(C_PTR), VALUE :: invec, inoutvec
INTEGER :: len
TYPE(MPI_Datatype) :: datatype

The copy and delete function arguments to MPI_Comm_create_keyval should be declared according to:

SUBROUTINE MPI_Comm_copy_attr_function(oldcomm, comm_keyval, extra_state, attribute_val_in, attribute_val_out, flag, ierror)
TYPE(MPI_Comm) :: oldcomm
INTEGER :: comm_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state, attribute_val_in, attribute_val_out
LOGICAL :: flag
SUBROUTINE MPI_Comm_delete_attr_function(comm, comm_keyval, attribute_val, extra_state, ierror)
TYPE(MPI_Comm) :: comm
INTEGER :: comm_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: attribute_val, extra_state

The copy and delete function arguments to MPI_Win_create_keyval should be declared according to:

SUBROUTINE MPI_Win_copy_attr_function(oldwin, win_keyval, extra_state, attribute_val_in, attribute_val_out, flag, ierror)
TYPE(MPI_Win) :: oldwin
INTEGER :: win_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state, attribute_val_in, attribute_val_out
LOGICAL :: flag
SUBROUTINE MPI_Win_delete_attr_function(win, win_keyval, attribute_val, extra_state, ierror)
TYPE(MPI_Win) :: win
INTEGER :: win_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: attribute_val, extra_state

The copy and delete function arguments to MPI_Type_create_keyval should be declared according to:

SUBROUTINE MPI_Type_copy_attr_function(oldtype, type_keyval, extra_state, attribute_val_in, attribute_val_out, flag, ierror)
TYPE(MPI_Datatype) :: oldtype
INTEGER :: type_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state, attribute_val_in, attribute_val_out
LOGICAL :: flag
SUBROUTINE MPI_Type_delete_attr_function(datatype, type_keyval, attribute_val, extra_state, ierror)
TYPE(MPI_Datatype) :: datatype
INTEGER :: type_keyval, ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: attribute_val, extra_state

The handler-function argument to MPI_Comm_create_errhandler should be declared like this:

SUBROUTINE MPI_Comm_errhandler_function(comm, error_code)
TYPE(MPI_Comm) :: comm
INTEGER :: error_code

The handler-function argument to MPI_Win_create_errhandler should be declared like this:

SUBROUTINE MPI_Win_errhandler_function(win, error_code)
TYPE(MPI_Win) :: win
INTEGER :: error_code

The handler-function argument to MPI_File_create_errhandler should be declared like this:

SUBROUTINE MPI_File_errhandler_function(file, error_code)
TYPE(MPI_File) :: file
INTEGER :: error_code

The query, free, and cancel function arguments to MPI_Grequest_start should be declared according to:

SUBROUTINE MPI_Grequest_query_function(extra_state, status, ierror)
TYPE(MPI_Status) :: status
INTEGER :: ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state
SUBROUTINE MPI_Grequest_free_function(extra_state, ierror)
INTEGER :: ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state
SUBROUTINE MPI_Grequest_cancel_function(extra_state, complete, ierror)
INTEGER :: ierror
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state
LOGICAL :: complete

The extent and conversion function arguments to MPI_Register_datarep should be declared according to:

SUBROUTINE MPI_Datarep_extent_function(datatype, extent, extra_state, ierror)
TYPE(MPI_Datatype) :: datatype
INTEGER(KIND=MPI_ADDRESS_KIND) :: extent, extra_state
INTEGER :: ierror

SUBROUTINE MPI_Datarep_conversion_function(userbuf, datatype, count, filebuf, position, extra_state, ierror)
USE, INTRINSIC :: ISO_C_BINDING, ONLY : C_PTR
TYPE(C_PTR), VALUE :: userbuf, filebuf
TYPE(MPI_Datatype) :: datatype
INTEGER :: count, ierror
INTEGER(KIND=MPI_OFFSET_KIND) :: position
INTEGER(KIND=MPI_ADDRESS_KIND) :: extra_state

390.3. Fortran Bindings with mpif.h or the mpi Module

With the Fortran mpi module or mpif.h, here are examples of how each of the user-defined subroutines should be declared.

The user-function argument to MPI_OP_CREATE should be declared like this:

SUBROUTINE USER_FUNCTION(INVEC, INOUTVEC, LEN, DATATYPE)
   <type> INVEC(LEN), INOUTVEC(LEN)
   INTEGER LEN, DATATYPE

SUBROUTINE COMM_COPY_ATTR_FUNCTION(OLDCOMM, COMM_KEYVAL, EXTRA_STATE,
             ATTRIBUTE_VAL_IN, ATTRIBUTE_VAL_OUT, FLAG, IERROR)
   INTEGER OLDCOMM, COMM_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE, ATTRIBUTE_VAL_IN,
             ATTRIBUTE_VAL_OUT
   LOGICAL FLAG

SUBROUTINE COMM_DELETE_ATTR_FUNCTION(COMM, COMM_KEYVAL, ATTRIBUTE_VAL,
             EXTRA_STATE, IERROR)
   INTEGER COMM, COMM_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) ATTRIBUTE_VAL, EXTRA_STATE

SUBROUTINE WIN_COPY_ATTR_FUNCTION(OLDWIN, WIN_KEYVAL, EXTRA_STATE,
             ATTRIBUTE_VAL_IN, ATTRIBUTE_VAL_OUT, FLAG, IERROR)
   INTEGER OLDWIN, WIN_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE, ATTRIBUTE_VAL_IN,
             ATTRIBUTE_VAL_OUT
   LOGICAL FLAG

SUBROUTINE WIN_DELETE_ATTR_FUNCTION(WIN, WIN_KEYVAL, ATTRIBUTE_VAL,
             EXTRA_STATE, IERROR)
   INTEGER WIN, WIN_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) ATTRIBUTE_VAL, EXTRA_STATE

SUBROUTINE TYPE_COPY_ATTR_FUNCTION(OLDTYPE, TYPE_KEYVAL, EXTRA_STATE,
              ATTRIBUTE_VAL_IN, ATTRIBUTE_VAL_OUT, FLAG, IERROR)
   INTEGER OLDTYPE, TYPE_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE,
              ATTRIBUTE_VAL_IN, ATTRIBUTE_VAL_OUT
   LOGICAL FLAG

SUBROUTINE TYPE_DELETE_ATTR_FUNCTION(DATATYPE, TYPE_KEYVAL, ATTRIBUTE_VAL,
              EXTRA_STATE, IERROR)
   INTEGER DATATYPE, TYPE_KEYVAL, IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) ATTRIBUTE_VAL, EXTRA_STATE

SUBROUTINE COMM_ERRHANDLER_FUNCTION(COMM, ERROR_CODE)
   INTEGER COMM, ERROR_CODE

SUBROUTINE WIN_ERRHANDLER_FUNCTION(WIN, ERROR_CODE)
   INTEGER WIN, ERROR_CODE

SUBROUTINE FILE_ERRHANDLER_FUNCTION(FILE, ERROR_CODE)
   INTEGER FILE, ERROR_CODE

SUBROUTINE GREQUEST_QUERY_FUNCTION(EXTRA_STATE, STATUS, IERROR)
   INTEGER STATUS(MPI_STATUS_SIZE), IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE

SUBROUTINE GREQUEST_FREE_FUNCTION(EXTRA_STATE, IERROR)
   INTEGER IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE

SUBROUTINE GREQUEST_CANCEL_FUNCTION(EXTRA_STATE, COMPLETE, IERROR)
   INTEGER IERROR
   INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE
   LOGICAL COMPLETE

SUBROUTINE DATAREP_EXTENT_FUNCTION(DATATYPE, EXTENT, EXTRA_STATE, IERROR)
    INTEGER DATATYPE, IERROR
    INTEGER(KIND=MPI_ADDRESS_KIND) EXTENT, EXTRA_STATE

SUBROUTINE DATAREP_CONVERSION_FUNCTION(USERBUF, DATATYPE, COUNT, FILEBUF,
             POSITION, EXTRA_STATE, IERROR)
    <TYPE> USERBUF(*), FILEBUF(*)
    INTEGER COUNT, DATATYPE, IERROR
    INTEGER(KIND=MPI_OFFSET_KIND) POSITION
    INTEGER(KIND=MPI_ADDRESS_KIND) EXTRA_STATE
