To understand how collective operations apply to intercommunicators,
we can view most MPI intracommunicator
collective operations as fitting one of the following categories (see, for
instance,
[43]):
-
All-To-All
-
All processes contribute to the result. All processes
receive the result.
- MPI_ALLGATHER, MPI_ALLGATHERV
- MPI_ALLTOALL, MPI_ALLTOALLV,
MPI_ALLTOALLW
- MPI_ALLREDUCE, MPI_REDUCE_SCATTER
- MPI_BARRIER
-
All-To-One
-
All processes contribute to the result. One process
receives the result.
- MPI_GATHER, MPI_GATHERV
- MPI_REDUCE
-
One-To-All
-
One process contributes to the result. All processes
receive the result.
- MPI_BCAST
- MPI_SCATTER, MPI_SCATTERV
-
Other
-
Collective operations that do not fit into one of the above
categories.
2.2The data movement patterns of MPI_SCAN
and MPI_EXSCAN
do not fit this taxonomy.
The application of collective communication to
intercommunicators is best described in terms of two groups.
For example, an all-to-all
MPI_ALLGATHER operation can be described as collecting data
from all members of one group with the result appearing in all members
of the other group (see Figure 2
). As another
example, a one-to-all MPI_BCAST operation sends data from one
member of one group to all members of the other group.
Collective computation operations such as MPI_REDUCE_SCATTER have
a
similar interpretation (see Figure 3
).
For intracommunicators, these two groups
are the same. For intercommunicators, these two groups are distinct.
For the all-to-all operations, each such operation is described in two phases,
so that it
has a symmetric, full-duplex behavior.
The following collective operations also apply to intercommunicators:
- MPI_BARRIER,
- MPI_BCAST,
- MPI_GATHER, MPI_GATHERV,
- MPI_SCATTER, MPI_SCATTERV,
- MPI_ALLGATHER, MPI_ALLGATHERV,
- MPI_ALLTOALL, MPI_ALLTOALLV, MPI_ALLTOALLW,
- MPI_ALLREDUCE, MPI_REDUCE,
- MPI_REDUCE_SCATTER.
In C++, the bindings for these functions are in the MPI::Comm class.
However,
since the collective operations do not make
sense on a C++ MPI::Comm
(as
it is neither an intercommunicator nor an intracommunicator),
the functions are all pure virtual.

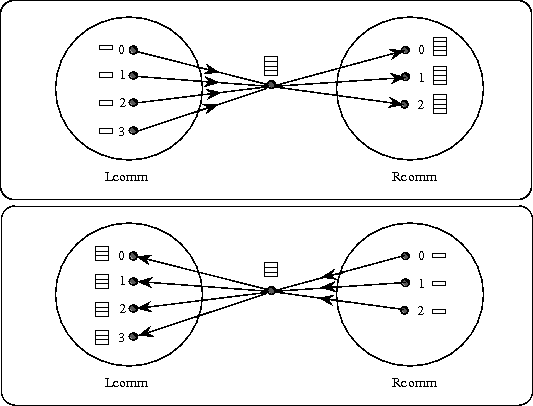

Figure 2: Intercommunicator allgather. The focus of data to one process is
represented, not mandated by the semantics.
The two phases do allgathers in both directions.

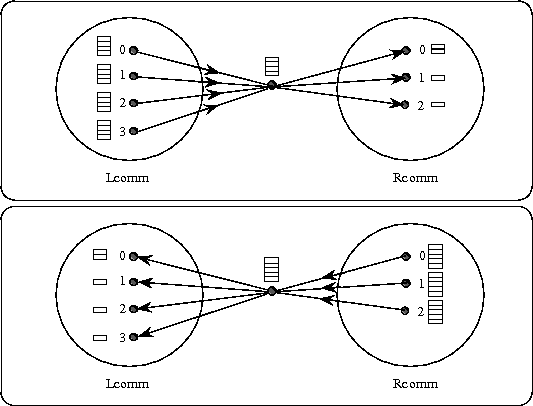

Figure 3: Intercommunicator reduce-scatter. The focus of data to one process
is represented, not mandated by the semantics.
The two phases do reduce-scatters in both directions.
