Handles are passed between Fortran and C by using an explicit C wrapper to convert Fortran handles to C handles. There is no direct access to C handles in Fortran.
The type definition MPI_Fint is provided in C for an integer of the size that matches a Fortran INTEGER; usually, MPI_Fint will be equivalent to int. With the Fortran mpi module or the (deprecated) mpif.h include file, a Fortran handle is a Fortran INTEGER value that can be used in the following conversion functions. With the Fortran mpi_f08 module, a Fortran handle is a BIND(C) derived type that contains an INTEGER component named MPI_VAL. This INTEGER value can be used in the following conversion functions.
The following functions are provided in C to convert from a Fortran communicator handle (which is an integer) to a C communicator handle, and vice versa.
C binding
MPI_Comm MPI_Comm_f2c(MPI_Fint comm)
If comm is a valid Fortran handle to a communicator, then MPI_Comm_f2c returns a valid C handle to that same communicator; if comm = MPI_COMM_NULL (Fortran value), then MPI_Comm_f2c returns a null C handle; if comm is an invalid Fortran handle, then MPI_Comm_f2c returns an invalid C handle.
MPI_Fint MPI_Comm_c2f(MPI_Comm comm)
The function MPI_Comm_c2f translates a C communicator handle into a Fortran handle to the same communicator; it maps a null handle into a null handle and an invalid handle into an invalid handle.
Similar functions are provided for the other types of opaque objects.
MPI_Datatype MPI_Type_f2c(MPI_Fint datatype)
MPI_Fint MPI_Type_c2f(MPI_Datatype datatype)
MPI_Group MPI_Group_f2c(MPI_Fint group)
MPI_Fint MPI_Group_c2f(MPI_Group group)
MPI_Request MPI_Request_f2c(MPI_Fint request)
MPI_Fint MPI_Request_c2f(MPI_Request request)
MPI_File MPI_File_f2c(MPI_Fint file)
MPI_Fint MPI_File_c2f(MPI_File file)
MPI_Win MPI_Win_f2c(MPI_Fint win)
MPI_Fint MPI_Win_c2f(MPI_Win win)
MPI_Op MPI_Op_f2c(MPI_Fint op)
MPI_Fint MPI_Op_c2f(MPI_Op op)
MPI_Info MPI_Info_f2c(MPI_Fint info)
MPI_Fint MPI_Info_c2f(MPI_Info info)
MPI_Errhandler MPI_Errhandler_f2c(MPI_Fint errhandler)
MPI_Fint MPI_Errhandler_c2f(MPI_Errhandler errhandler)
MPI_Message MPI_Message_f2c(MPI_Fint message)
MPI_Fint MPI_Message_c2f(MPI_Message message)
MPI_Session MPI_Session_f2c(MPI_Fint session)
MPI_Fint MPI_Session_c2f(MPI_Session session)
Example

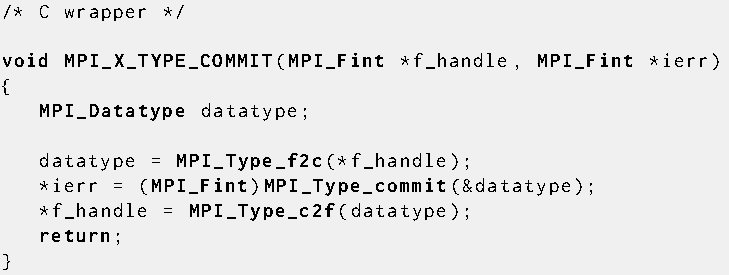

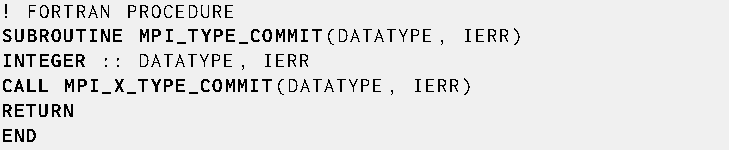

The example below illustrates how the Fortran MPI function
MPI_TYPE_COMMIT can be implemented by wrapping the C MPI
function MPI_Type_commit with a C wrapper to do handle
conversions.
In this example a Fortran-C interface is assumed where a Fortran function is
all upper case when referred to from C and arguments are passed by addresses.
The same approach can be used for all other MPI functions. The call to MPI_ XXX_f2c (resp. MPI_ XXX_c2f) can be omitted when the handle is an OUT (resp. IN) argument, rather than INOUT.
Rationale.
The design here provides a convenient solution for the prevalent case, where a C wrapper is used to allow Fortran code to call a C library, or C code to call a Fortran library. The use of C wrappers is much more likely than the use of Fortran wrappers, because it is much more likely that a variable of type INTEGER can be passed to C, than a C handle can be passed to Fortran.
Returning the converted value as a function value rather than
through the argument list allows the generation of efficient
inlined code when these functions are simple (e.g., the identity).
The conversion function in the wrapper
does not catch an invalid handle argument. Instead, an invalid handle
is passed below to the library function, which, presumably, checks its
input arguments.
( End of rationale.)
