8.5.6. Library Example #2

PreviousUpNext
Up: Motivating Examples Next: Inter-Communication Previous: Library Example #1


Example Second library example

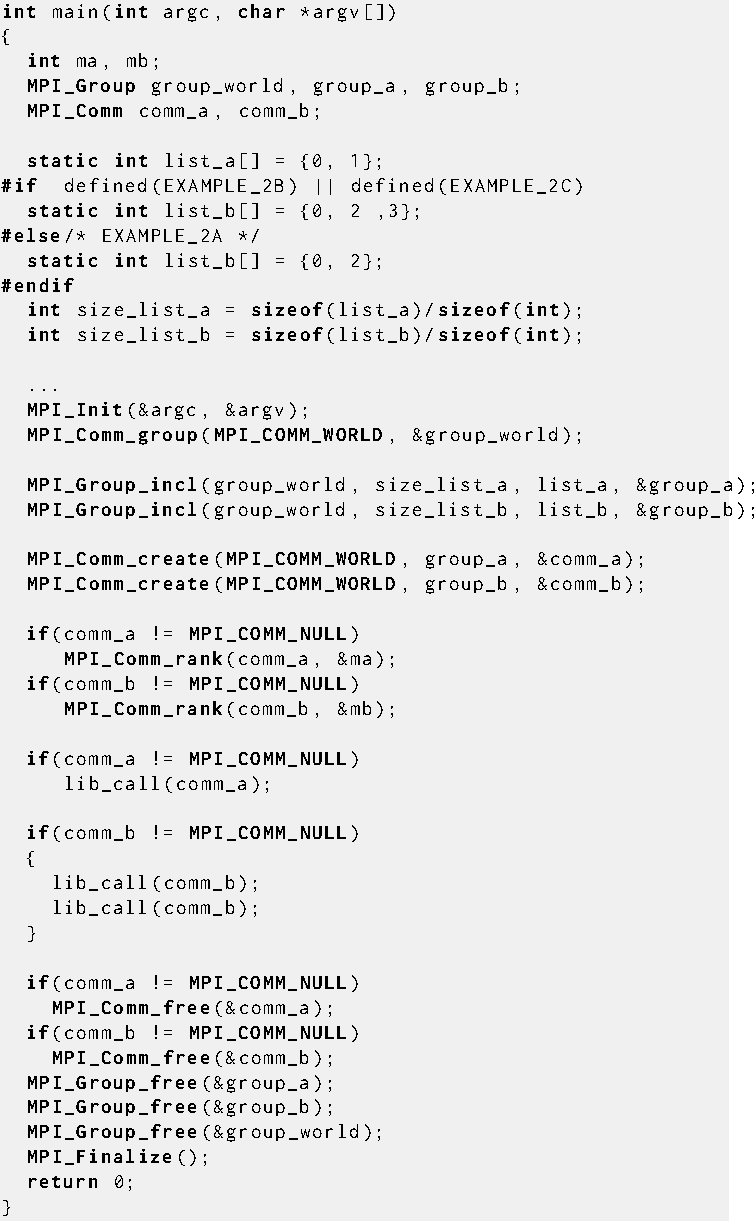

The main program:

Image file

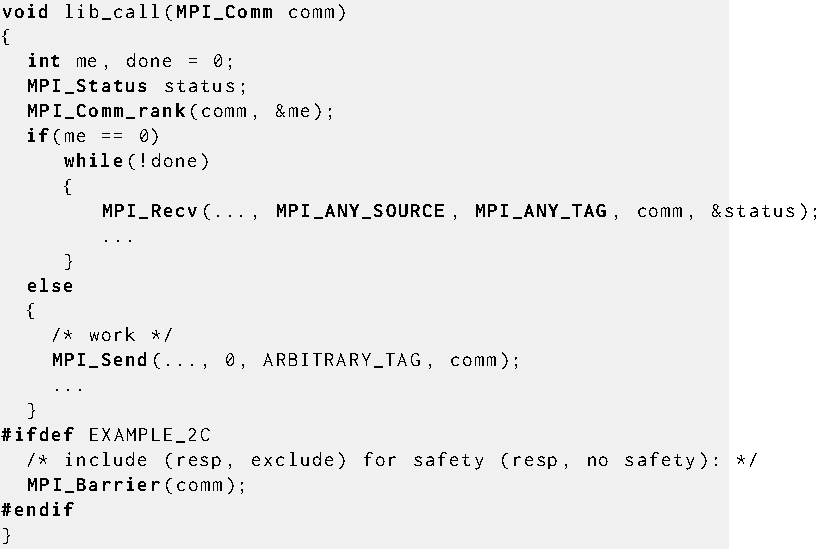

The library:

Image file

The above example is three examples, depending on whether or not one includes rank 3 in list_b, and whether or not a synchronizing operation is included in lib_call. This example illustrates that, despite contexts, subsequent calls to lib_call with the same context need not be safe from one another (colloquially, ``back-masking''). Safety is realized if a call to MPI_Barrier is added. What this demonstrates is that libraries have to be written carefully, even with contexts. When rank 3 is excluded, then the synchronizing operation is not needed to get safety from back-masking.

Algorithms like ``reduce'' and ``allreduce'' have strong enough source selectivity properties so that they are inherently okay (no back-masking), provided that MPI provides basic guarantees. So are multiple calls to a typical tree-broadcast algorithm with the same root or different roots (see [65]). Here we rely on two guarantees of MPI: pairwise ordering of messages between MPI processes in the same context, and source selectivity---deleting either feature removes the guarantee that back-masking cannot be required.

Algorithms that try to do nondeterministic broadcasts or other calls that include wildcard operations will not generally have the good properties of the deterministic implementations of ``reduce,'' ``allreduce,'' and ``broadcast.'' Such algorithms would have to utilize the monotonically increasing tags (within a communicator scope) to keep things straight.

All of the foregoing is a supposition of ``collective calls'' implemented with point-to-point operations. MPI implementations may or may not implement collective calls using point-to-point operations. These algorithms are used to illustrate the issues of correctness and safety, independent of how MPI implements its collective calls. See also Section Formalizing the Loosely Synchronous Model.
