The following examples illustrate the use of derived datatypes.
Example

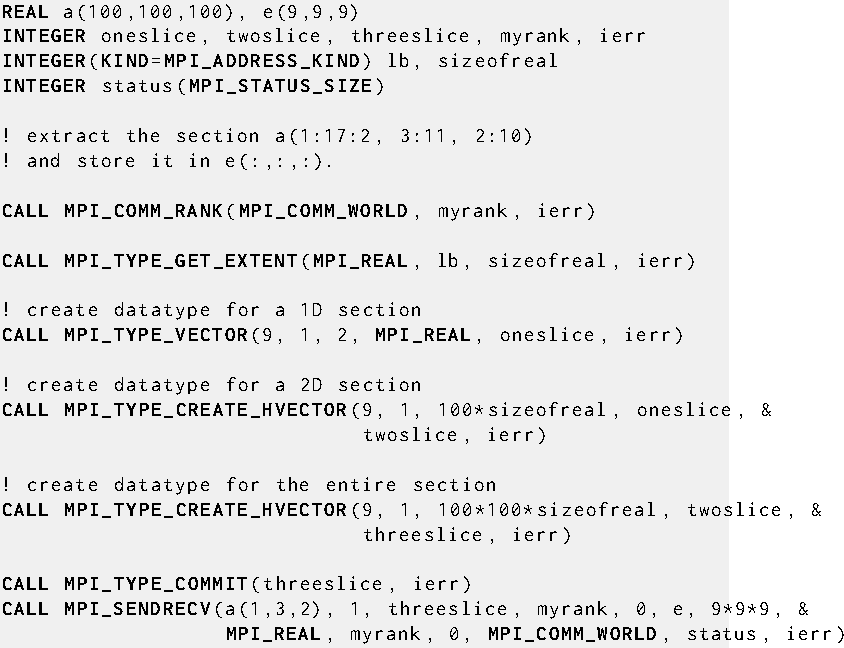

Send and receive a section of a 3D array.
Example

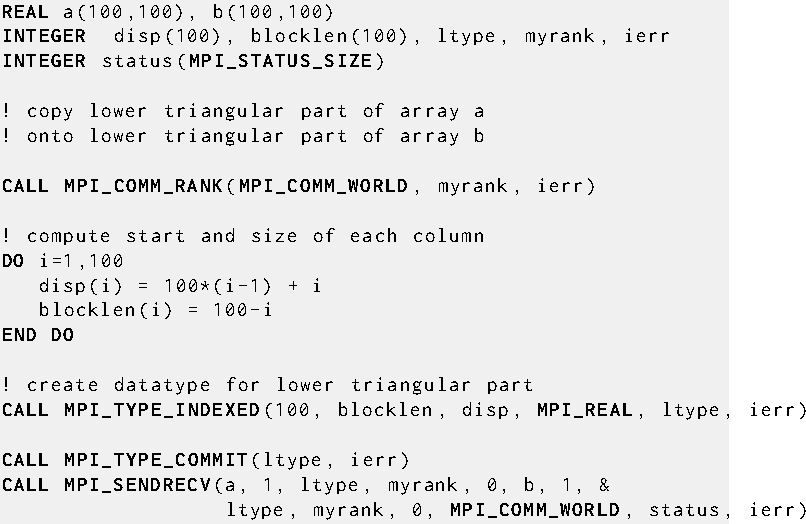

Copy the (strictly) lower triangular part of a matrix.
Example

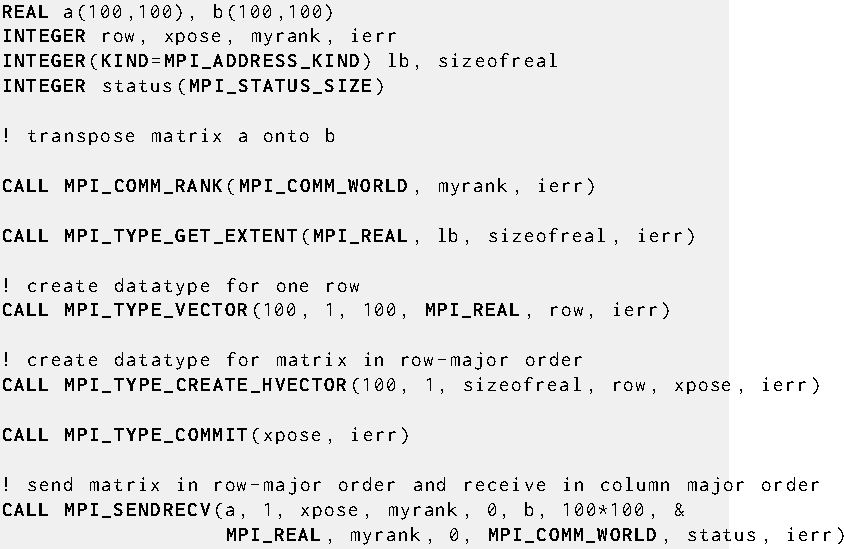

Transpose a matrix.
Example

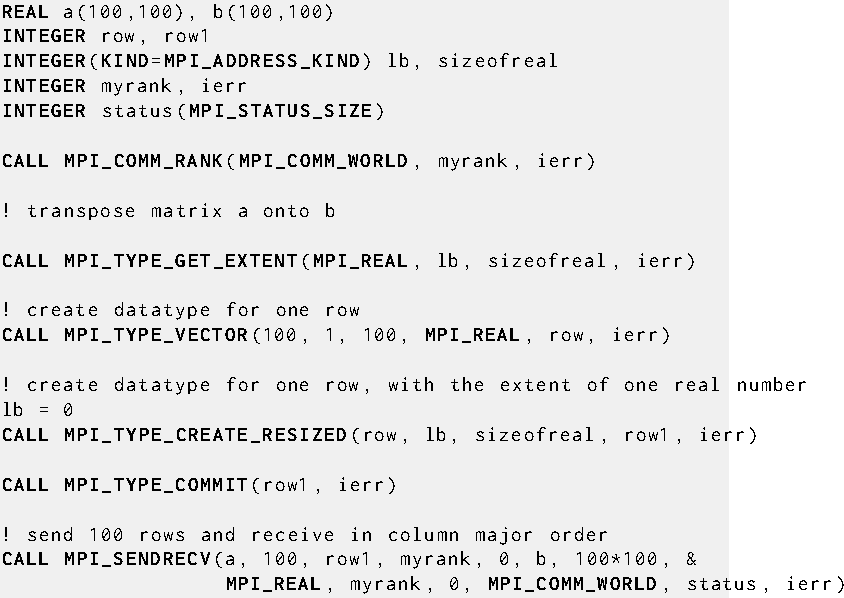

Another approach to the transpose problem:
Example

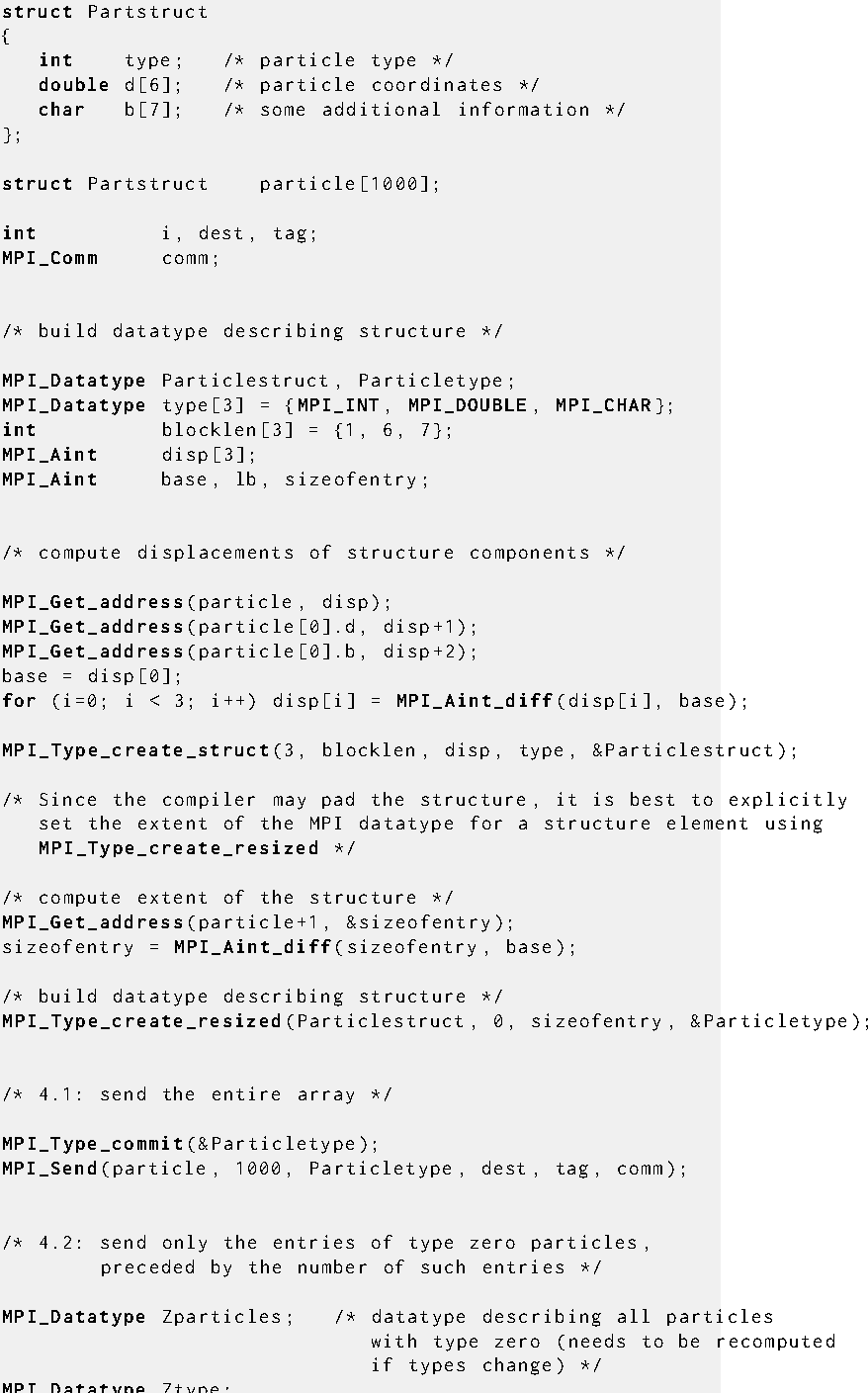

Use of MPI datatypes to manipulate an array of structures.
Example

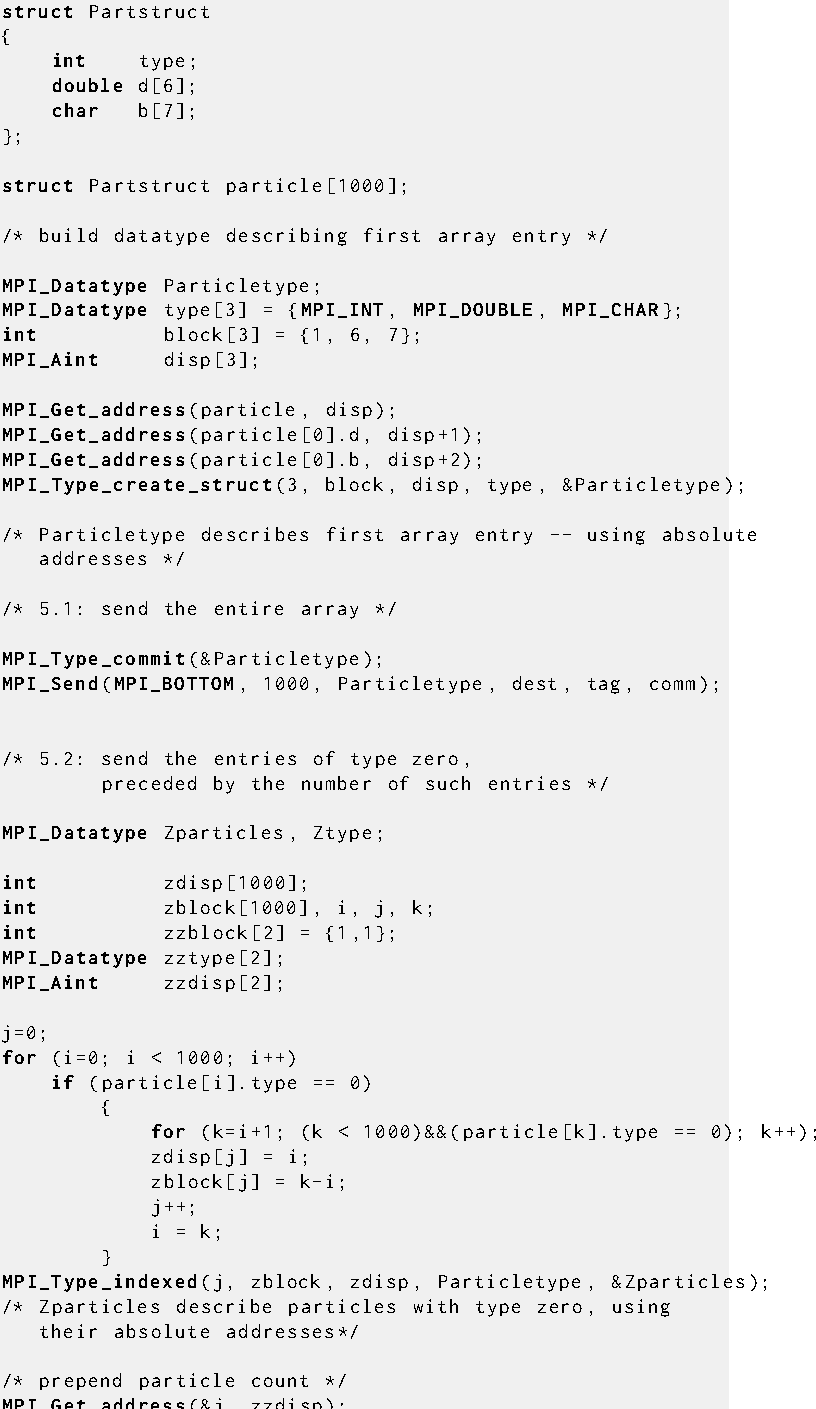

The same manipulations as in the previous example, but use absolute
addresses in datatypes.
Example

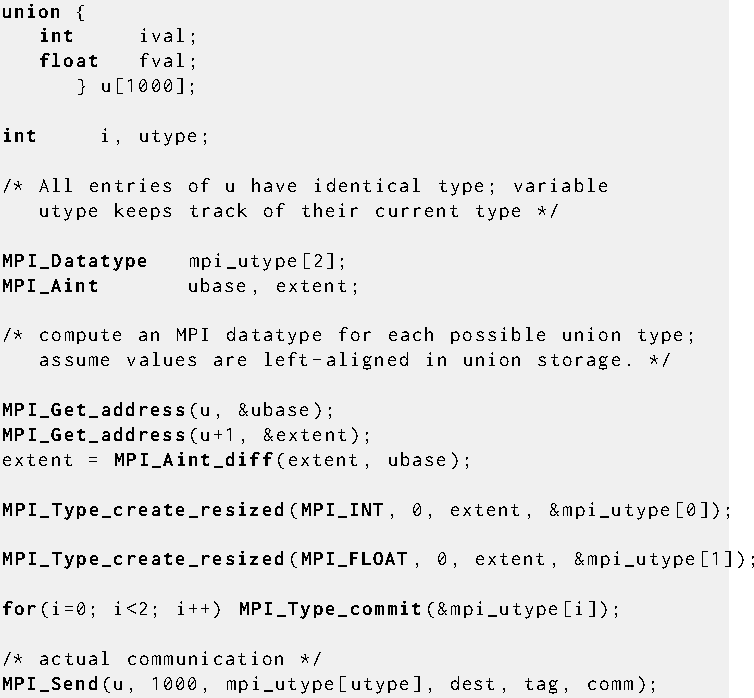

This example shows how datatypes can be used to handle unions.
Example

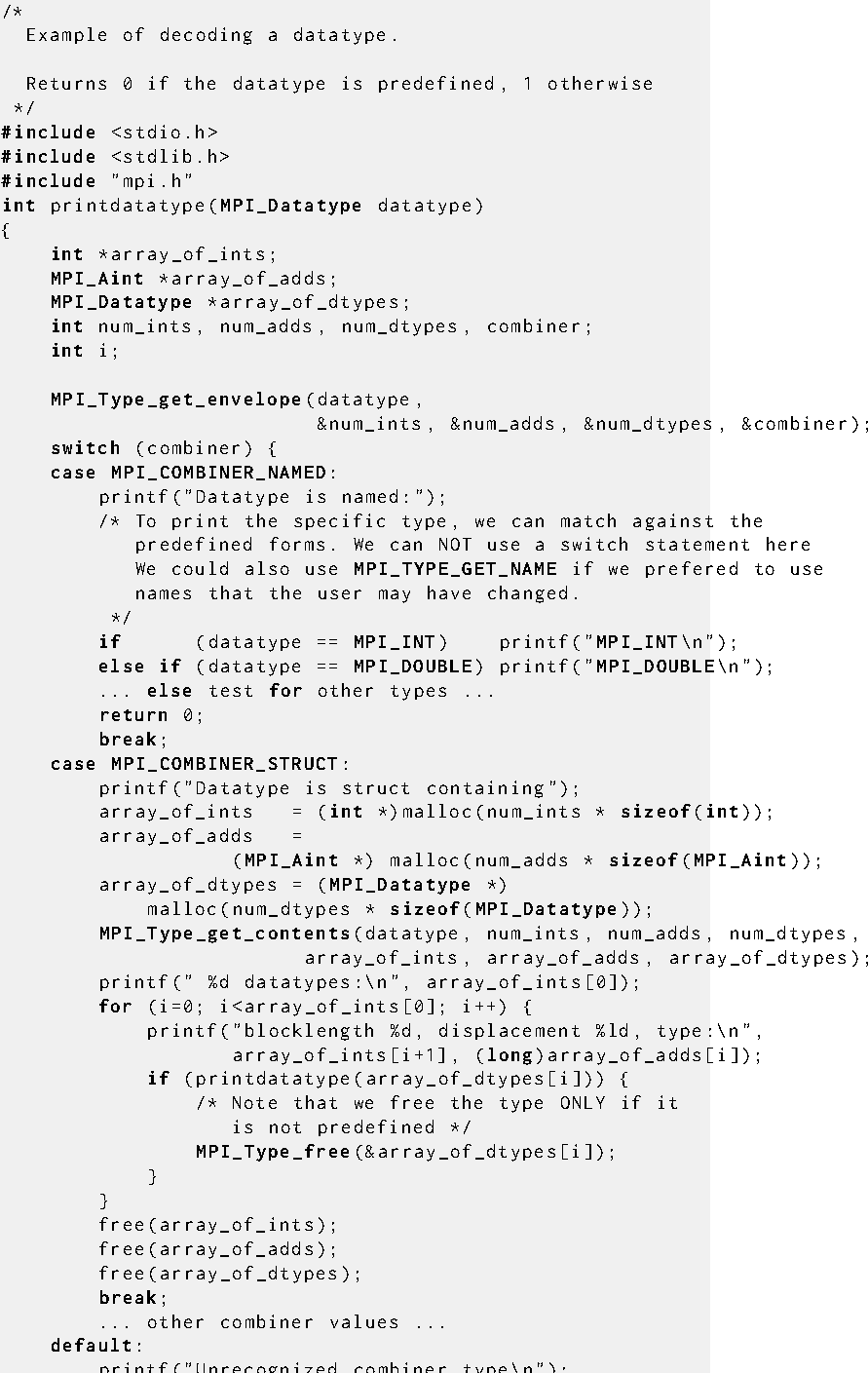

This
example shows how a datatype can be decoded. The routine
printdatatype prints out the elements of the datatype. Note the use
of MPI_Type_free for datatypes that are not predefined.
