A user may specify a buffer to be used for buffering messages sent in buffered mode. Buffering is done by the sender.
| MPI_BUFFER_ATTACH(buffer, size) | |
| IN buffer | initial buffer address (choice) |
| IN size | buffer size, in bytes (non-negative integer) |
int MPI_Buffer_attach(void* buffer, int size)
MPI_BUFFER_ATTACH(BUFFER, SIZE, IERROR)
int MPI_Buffer_detach(void* buffer_addr, int* size)
MPI_BUFFER_DETACH(BUFFER_ADDR, SIZE, IERROR)
Even though the C functions
MPI_Buffer_attach and MPI_Buffer_detach both have
a first argument of type void*, these arguments are used
differently: A pointer to the buffer is passed to MPI_Buffer_attach;
the address of the pointer is passed to MPI_Buffer_detach, so that
this call can return the pointer value.
( End of advice to users.)
Both arguments are defined to be of type void* (rather than
void* and void**, respectively), so as to avoid complex type
casts. E.g., in the last example, &buff, which is of type
char**, can be passed as argument to MPI_Buffer_detach
without type casting. If the formal parameter had type void** then we
would need a type cast before and after the call.
( End of rationale.)
The statements made in this section describe the behavior of MPI
for buffered-mode sends.
When no buffer is currently associated, MPI behaves as if a
zero-sized buffer is associated with the process.
MPI must provide as much buffering for outgoing messages as if
outgoing message
data were buffered by the sending process, in the specified buffer space,
using a circular, contiguous-space allocation policy.
We outline below a model implementation that defines this policy.
MPI may provide more buffering, and may use a better buffer allocation
algorithm
than described below. On the other hand, MPI may signal an error whenever the
simple buffering allocator described below would run out of space. In
particular, if no buffer is explicitly associated with the process, then any
buffered send may cause an error.
MPI does not provide mechanisms for querying or controlling buffering done by
standard mode sends. It is expected that vendors will provide such
information
for their implementations.
There is a wide spectrum of possible implementations of buffered communication:
buffering can be done at sender, at receiver, or both; buffers can be dedicated
to one sender-receiver pair, or be shared by
all communications; buffering can be done in real or
in virtual memory; it can use dedicated memory, or memory shared by other
processes; buffer space may be allocated statically or be changed dynamically;
etc. It does not seem feasible to provide a portable mechanism for querying
or controlling buffering that would be compatible with all these choices, yet
provide meaningful information.
( End of rationale.)
<type> BUFFER(*)
INTEGER SIZE, IERROR
{ void MPI::Attach_buffer(void* buffer, int size) (binding deprecated, see Section Deprecated since MPI-2.2
) }
Provides to MPI a buffer in the user's memory to be used for buffering outgoing
messages. The buffer is used only by messages sent in buffered mode.
Only one buffer can be attached to a process at a time.
MPI_BUFFER_DETACH(buffer_addr, size) OUT buffer_addr initial buffer address (choice) OUT size buffer size, in bytes (non-negative
integer)
<type> BUFFER_ADDR(*)
INTEGER SIZE, IERROR
{ int MPI::Detach_buffer(void*& buffer) (binding deprecated, see Section Deprecated since MPI-2.2
) }
Detach the buffer currently associated with MPI. The call returns the
address and the size of the detached buffer. This operation
will block until all messages currently in the buffer have been transmitted.
Upon return of
this function, the user may reuse or deallocate the space taken by the buffer.

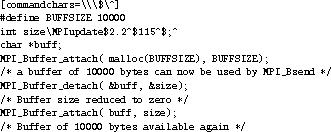

Example
Calls to attach and detach buffers.
Advice to users.
Rationale.
Rationale.
