124. Nonblocking Scatter

PreviousUpNext
Up: Nonblocking Collective Operations Next: Nonblocking Gather-to-all Previous: Nonblocking Gather

Image file

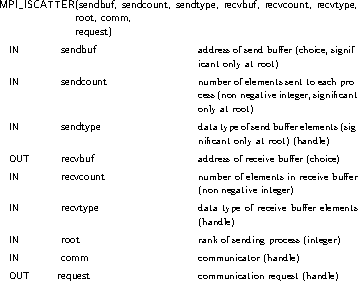

int MPI_Iscatter(const void* sendbuf, int sendcount, MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, int root, MPI_Comm comm, MPI_Request *request)

MPI_Iscatter(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, root, comm, request, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: sendbuf
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: recvbuf
INTEGER, INTENT(IN) :: sendcount, recvcount, root
TYPE(MPI_Datatype), INTENT(IN) :: sendtype, recvtype
TYPE(MPI_Comm), INTENT(IN) :: comm
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_ISCATTER(SENDBUF, SENDCOUNT, SENDTYPE, RECVBUF, RECVCOUNT, RECVTYPE, ROOT, COMM, REQUEST, IERROR)
<type> SENDBUF(*), RECVBUF(*)
INTEGER SENDCOUNT, SENDTYPE, RECVCOUNT, RECVTYPE, ROOT, COMM, REQUEST, IERROR

This call starts a nonblocking variant of MPI_SCATTER (see Section Scatter ).

MPI_ISCATTERV(sendbuf, sendcounts, displs, sendtype, recvbuf, recvcount, recvtype, root, comm, request)
IN sendbuf address of send buffer (choice, significant only at root)
IN sendcountsnon-negative integer array (of length group size) specifying the number of elements to send to each rank
IN displs integer array (of length group size). Entry i specifies the displacement (relative to sendbuf) from which to take the outgoing data to process i
IN sendtype data type of send buffer elements (handle)
OUT recvbuf address of receive buffer (choice)
IN recvcount number of elements in receive buffer (non-negative integer)
IN recvtype data type of receive buffer elements (handle)
IN root rank of sending process (integer)
IN comm communicator (handle)
OUT requestcommunication request (handle)

int MPI_Iscatterv(const void* sendbuf, const int sendcounts[], const int displs[], MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, int root, MPI_Comm comm, MPI_Request *request)

MPI_Iscatterv(sendbuf, sendcounts, displs, sendtype, recvbuf, recvcount, recvtype, root, comm, request, ierror)
TYPE(*), DIMENSION(..), INTENT(IN), ASYNCHRONOUS :: sendbuf
TYPE(*), DIMENSION(..), ASYNCHRONOUS :: recvbuf
INTEGER, INTENT(IN), ASYNCHRONOUS :: sendcounts(*), displs(*)
INTEGER, INTENT(IN) :: recvcount, root
TYPE(MPI_Datatype), INTENT(IN) :: sendtype, recvtype
TYPE(MPI_Comm), INTENT(IN) :: comm
TYPE(MPI_Request), INTENT(OUT) :: request
INTEGER, OPTIONAL, INTENT(OUT) :: ierror
MPI_ISCATTERV(SENDBUF, SENDCOUNTS, DISPLS, SENDTYPE, RECVBUF, RECVCOUNT, RECVTYPE, ROOT, COMM, REQUEST, IERROR)
<type> SENDBUF(*), RECVBUF(*)
INTEGER SENDCOUNTS(*), DISPLS(*), SENDTYPE, RECVCOUNT, RECVTYPE, ROOT, COMM, REQUEST, IERROR

This call starts a nonblocking variant of MPI_SCATTERV (see Section Scatter ).
